Usable Capacity
10.24kWh
Two 51.2V / 5.12kWh modules stacked in one tower.
Max Charge / Discharge
80A
Fast solar charging with 110% overload capability for start-up surges.
Footprint
637×387×1075mm
Stackable tower weighing 169.8 kg, moved into place without crane work.
Expandable
5–20kWh
Add modules to reach 15.36 or 20.48 kWh on the same platform.
Overview

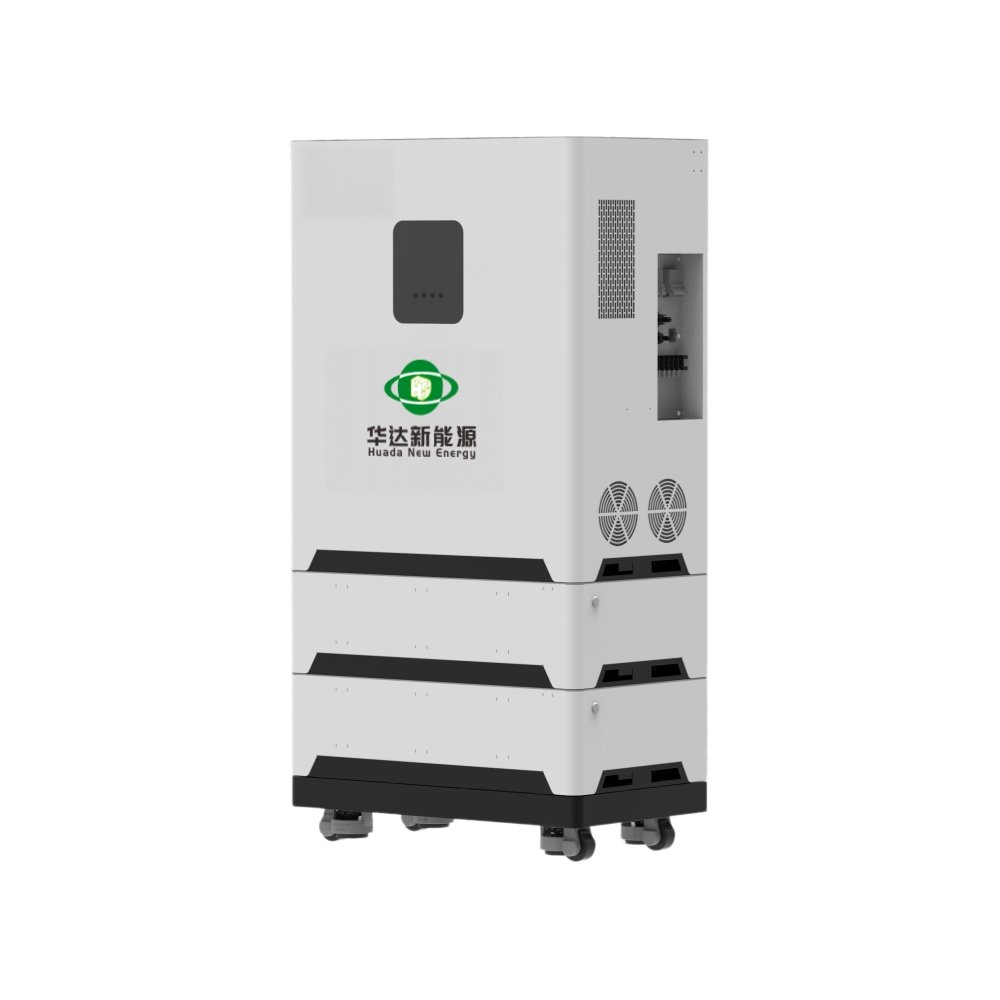

The H096-(5-20)kWh stackable all-in-one home battery combines LiFePO4 modules and a built-in inverter in one tower. Two 51.2V / 5.12kWh modules give 10.24kWh of usable capacity out of the box, and further modules stack on top when the household load grows — up to 20.48kWh. Because the inverter is integrated, there is no separate inverter to source or match, and the mobile design lets one installer place the tower where it suits the home.
Start with two modules and add a third or fourth later instead of replacing the whole system.
5.12 to 20.48kWh on one platform
No inverter matching to calculate and no extra cabinet to wall-mount.
Lower equipment and labour cost
Each 51.2V / 5.12kWh module uses cells chosen for long cycle life and thermal stability.
Over 3000 cycles with 80%+ retained
Guards against overcharge, over-discharge, short circuits and thermal faults.
Managed module by module
Check state of charge and running status from anywhere without extra hardware.
Direct pairing with the phone
The tower moves into position on its base, keeping installation equipment simple.
No crane or heavy handling needed
System Topology
The tower sits between rooftop solar, the utility grid and your loads, with the inverter already inside the stack — so wiring is limited to grid connection type L+N+PE and the RS485 / CAN link.
Surplus daytime generation charges the stack before it is exported at a low feed-in rate.
Grid connection type L+N+PE, with 110% overload capability for motor start-up surges.
Two 51.2V / 5.12kWh modules working across a 40V–58.4V window.
Converts stored DC to AC and switches to backup mode when the grid drops.
WiFi and Bluetooth for direct status checks, RS485 / CAN for hard-wired integration.
What’s Inside
Each configuration is assembled, stacked and full-function tested before shipment, so installation on site is limited to placing, wiring and switching on.
Each module is 5.12kWh and roughly 51.8 kg, giving 10.24kWh in this configuration.
Balancing and protection handled per module, then coordinated across the stack.
AC/DC conversion and grid-tie logic inside the same tower.
Mechanical and electrical interfaces prepared for the third and fourth module.
Standard wired link to hybrid inverters and energy management equipment.
WiFi and Bluetooth pairing with the mobile APP.
Specifications
Parameters for the two-module 10.24kWh configuration, together with the other options on the same platform. Need a stamped datasheet for a tender or utility paperwork? Request it through the form at the bottom of this page.
| Item | H096-(5-20)kWh stackable |
|---|---|
| System | |
| Product Name | H096-(5-20)kWh stackable |
| Battery Module | 51.2V / 5.12kWh / 51.8kg |
| Number of Modules | 2 |
| Battery Capacity | 10.24kWh |
| Installation Mode | Stackable |
| Battery Cycle Life | Over 3000 cycles, remaining capacity above 80% |
| Electrical | |
| Nominal Voltage | 51.2V |
| Battery Voltage Range | 40V – 58.4V |
| Max Charge / Discharge Current | 80A |
| Overload Capacity | 110% |
| Grid Connection Type | L+N+PE |
| Communication | RS485 / CAN |
| Communication Mode | WiFi and Bluetooth connection with mobile APP |
| Mechanical & Environment | |
| Dimensions (L×W×H) | 637 × 387 × 1075 mm |
| Weight | 169.8 kg |
| Charging Temperature | 0 °C ~ 50 °C |
| Discharge Temperature | −20 °C ~ 50 °C |
| Protection & Certification | |
| System protection | Over-temperature protection, over-voltage protection, over-current protection, over-charge protection, over-discharge protection and load short-circuit protection |
| Certification standards | CE / FCC / RoHS |
| Protection Level | IP20 |
Specifications follow the documents shipped with each unit. Capacity, branding, enclosure and communication protocol can be customized for OEM / ODM programmes.
Applications
Homes that expect their consumption to grow — an electric vehicle charger today, a heat pump tomorrow — and want storage they can expand rather than replace.
Evening self-consumption today with room to add modules later.
Higher capacity in a footprint that still fits a plant room.
Essential circuits stay powered through extended grid outages.
Supports both off-grid and grid-tied solar storage applications.
Charge cheap, discharge expensive, scheduled by the built-in logic.
Prepare today for an EV charger or heat pump without replacing the stack.
Packing & Delivery
Every unit completes full-function testing before packing, ships in reinforced export packaging and arrives ready to wire up.
Two, three or four modules selected against your daily consumption.
Before order
Modules matched and stacked, with cell batch records kept on file.
Per order schedule
Capacity, protection and inverter functions tested on the assembled tower.
Completed pre-shipment
Protective packing and export carton suitable for sea and land transport.
Standard export packing
Packing list, parameter sheet and wiring guidance travel with the tower.
Per shipping schedule
Placed and wired by a qualified installer, then paired with the mobile APP.
Depends on site conditions
