Usable Capacity
5.12kWh
100Ah / 51.2V LiFePO4 pack — the entry size for apartments and starter homes.
Installation
Wall-mounted
460×145×515 mm at 45 kg, mounted on the wall to save floor space.
Monitoring
LCD+ APP
Local LCD readout plus WiFi and Bluetooth connection to the mobile APP.
Cycle Life
3000+ cycles
LiFePO4 cells keep more than 80% of the original capacity after 3000 cycles.
Overview

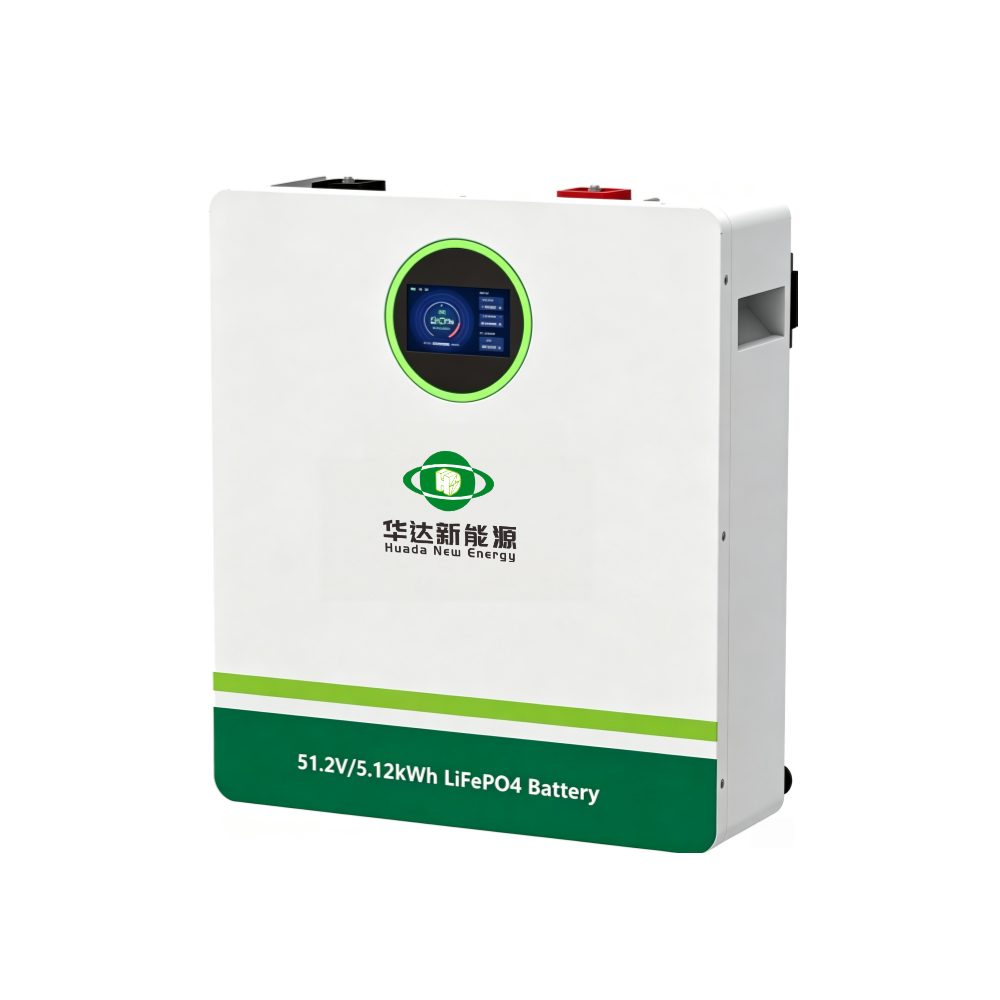

The 5.12kWh home energy storage battery uses safe LiFePO4 cells for residential solar storage and standby backup. A 100Ah / 51.2V pack sits in a slim 460 × 145 × 515 mm case that mounts on the wall at just 45 kg, so no floor space is lost in the apartment, garage or hallway. It is the practical starting point for households that want dependable backup today and plan to add capacity later.
Lithium iron phosphate chemistry chosen for thermal stability in occupied living spaces.
Over 3000 cycles with 80%+ capacity retained
Hangs on the wall at 45 kg, keeping floor space free for parking or storage.
Slim 460 × 145 × 515 mm case
Read state of charge and voltage on the unit, or check status on the phone.
WiFi and Bluetooth built in
Protection against over-voltage, over-current, over-temperature and short circuits.
Continuous cell-level monitoring
Standard wired link to hybrid inverters and energy management equipment.
Fits most residential solar setups
Covers lighting, networking, refrigeration and other essential circuits overnight.
Grow later with stacked or larger cabinets
System Topology

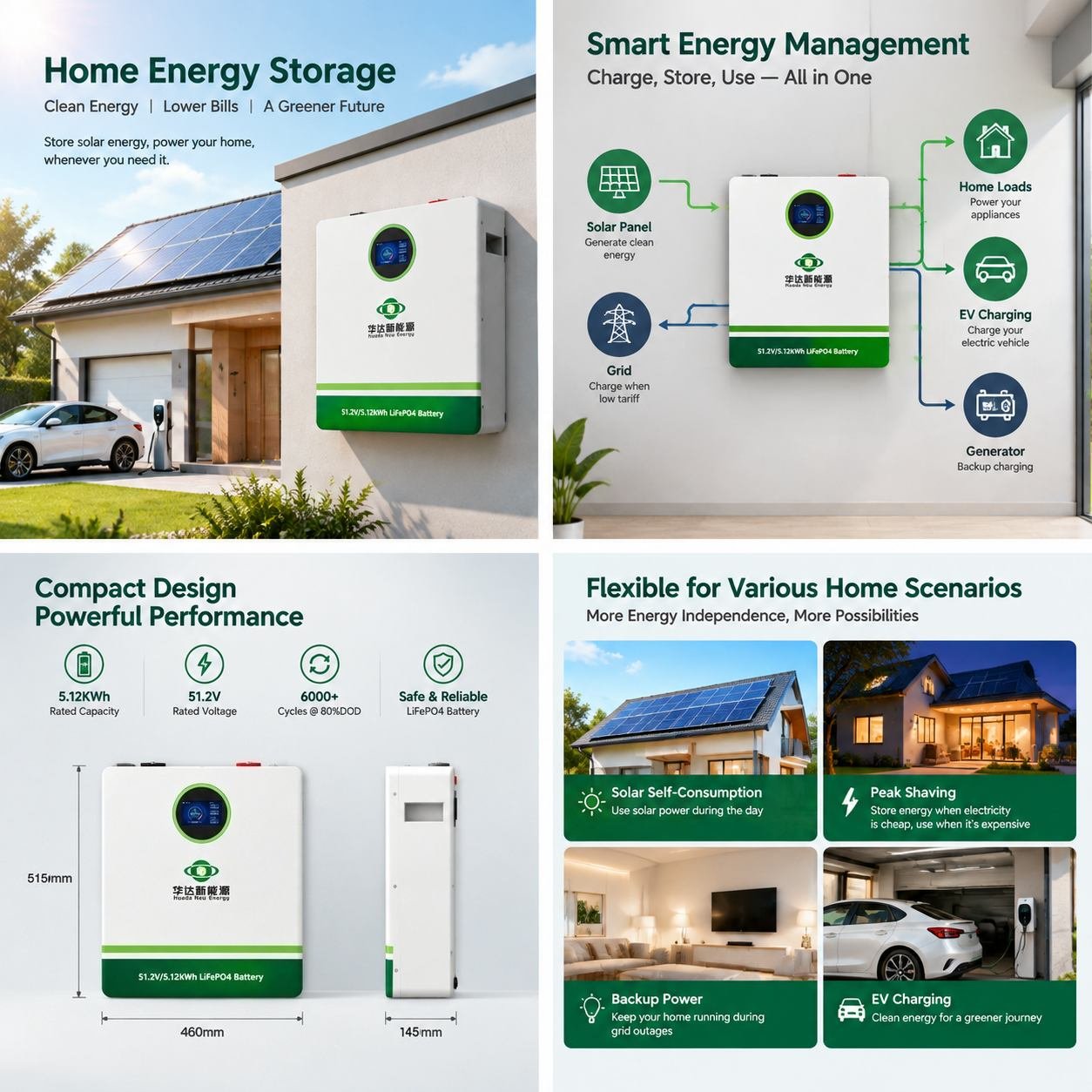

The battery sits between your rooftop solar, the grid and your essential loads. Because it is wall-mounted, it can be placed close to the distribution board and inverter to keep cable runs short.
Surplus daytime generation is stored rather than exported at a low feed-in rate.
Charges the unit during cheap tariff windows and takes surplus export.
A 100Ah / 51.2V LiFePO4 pack rated 5.12kWh, working across a 40V–58V window.
Converts stored DC to AC and manages the changeover during an outage.
Lighting, networking, refrigeration and other priority circuits stay powered.
What’s Inside
Assembled, inspected and full-function tested before shipment, so the installer mounts it, wires it and switches it on in a single visit.
Rated 5120Wh and working inside a 40V–58V voltage window.
Cell balancing plus protection against electrical and thermal faults.
State of charge, voltage and alarms shown on the unit.
Wired connection to hybrid inverters and energy management systems.
WiFi and Bluetooth pairing with the mobile APP.
Mounting hardware for fixing the slim case next to the distribution board.
Specifications
Complete parameters for the 5.12kWh wall-mounted unit. Need more storage now? The same series covers 10.24kWh and 14.33kWh floor-standing cabinets. Request a datasheet through the form below.
| Item | H096-5kWh class |
|---|---|
| System | |
| Model | H096-5kWh class |
| Battery Capacity | 100Ah / 51.2V (5.12kWh) |
| Battery Type | LiFePO4 |
| Installation Mode | Wall-mounted |
| Battery Cycle Life | Over 3000 cycles, remaining capacity above 80% |
| Electrical | |
| Battery Voltage Range | 40V – 58V |
| Communication | RS485 / CAN |
| Communication Mode | WiFi and Bluetooth connection with mobile APP |
| User Interface | LCD |
| Mechanical & Environment | |
| Dimensions (L×W×H) | 460 × 145 × 515 mm |
| Weight | 45 kg |
| Discharge Temperature | −20 °C ~ 50 °C (recommended ambient 20 °C ~ 30 °C) |
| Charging Temperature | −5 °C ~ 50 °C (recommended ambient 20 °C ~ 30 °C) |
| Storage Temperature | Recommended 0 °C ~ 45 °C |
| Protection & Certification | |
| System protection | Over-temperature protection, over-voltage protection, over-current protection, over-charge protection, over-discharge protection and load short-circuit protection |
| Certification standards | CE / FCC / RoHS |
| Protection Level | IP20 |
Specifications follow the documents shipped with each unit. Capacity, branding, enclosure and communication protocol can be customized for OEM / ODM programmes.
Applications
Apartments, starter homes and small households where floor space matters and the priority is dependable backup for essential circuits.
Wall-mounted backup that does not eat living or parking space.
Lighting, networking, refrigeration and security systems stay on during blackouts.
Right-sized storage for solar arrays in the 3–5kWp range.
Cover the evening load instead of buying it back at the peak tariff.
Keep a security system, router and refrigerator running between visits.
Start small and move up to 10.24kWh or 14.33kWh as the household grows.
Packing & Delivery
Every unit completes full-function testing before packing, ships in reinforced export packaging and arrives ready to wire up.
5.12kWh chosen against your essential-load list and available wall space.
Before order
Built to the confirmed configuration, with cell batch records kept on file.
Per order schedule
Capacity, protection and communication functions tested before shipment.
Completed pre-shipment
Protective packing and export carton suitable for sea and land transport.
Standard export packing
Packing list, parameter sheet and mounting guidance travel with the unit.
Per shipping schedule
Wall-mounted and wired by a qualified installer, then paired with the mobile APP.
Depends on site conditions
FAQ
The questions homeowners, installers and distributors ask us most often about this battery.
Get a Quote
Share your monthly consumption, essential loads and whether you already have rooftop solar — we will come back with a capacity recommendation and a quotation.
Who We Are
Huada New Energy (Huizhou Huada Technology Co., Ltd.) is a professional energy storage manufacturer with a complete product portfolio — portable power stations, household energy storage systems and commercial & industrial (C&I) solutions. Starting from lead-acid battery production, we have grown into an advanced lithium technology manufacturer.
We are backed by multiple invention patents, utility model patents, design patents and High-Tech Enterprise certification. With a professional R&D team, modern production facilities and a global energy monitoring data center, we provide reliable OEM/ODM services for customers worldwide.
Advanced lithium battery manufacturer, upgraded from lead-acid production.
Reliable OEM/ODM services for customers worldwide.
Global energy monitoring data center for after-sales support.
High-Tech Enterprise certification with a full patent portfolio.
