This containerized energy storage system serves multiple energy scenarios:
Battery Capacity
3153.9kWh
4082Ah / 768V LiFePO4 battery bank in a standard 40ft container.
Rated Power
1MW
Peak power 1.1MW. AC output 400V (−20% ~ +15%).
Container Form Factor
40ft

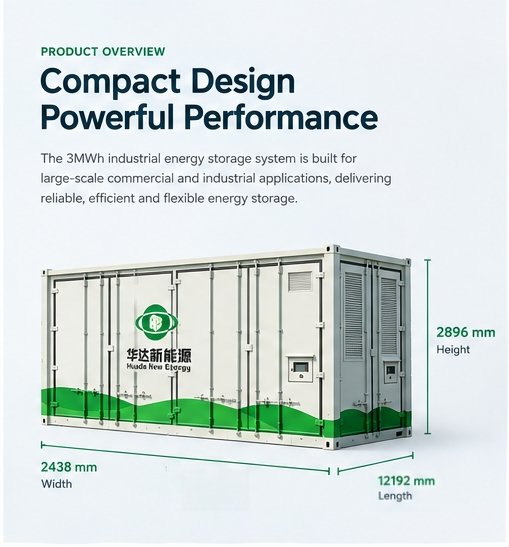

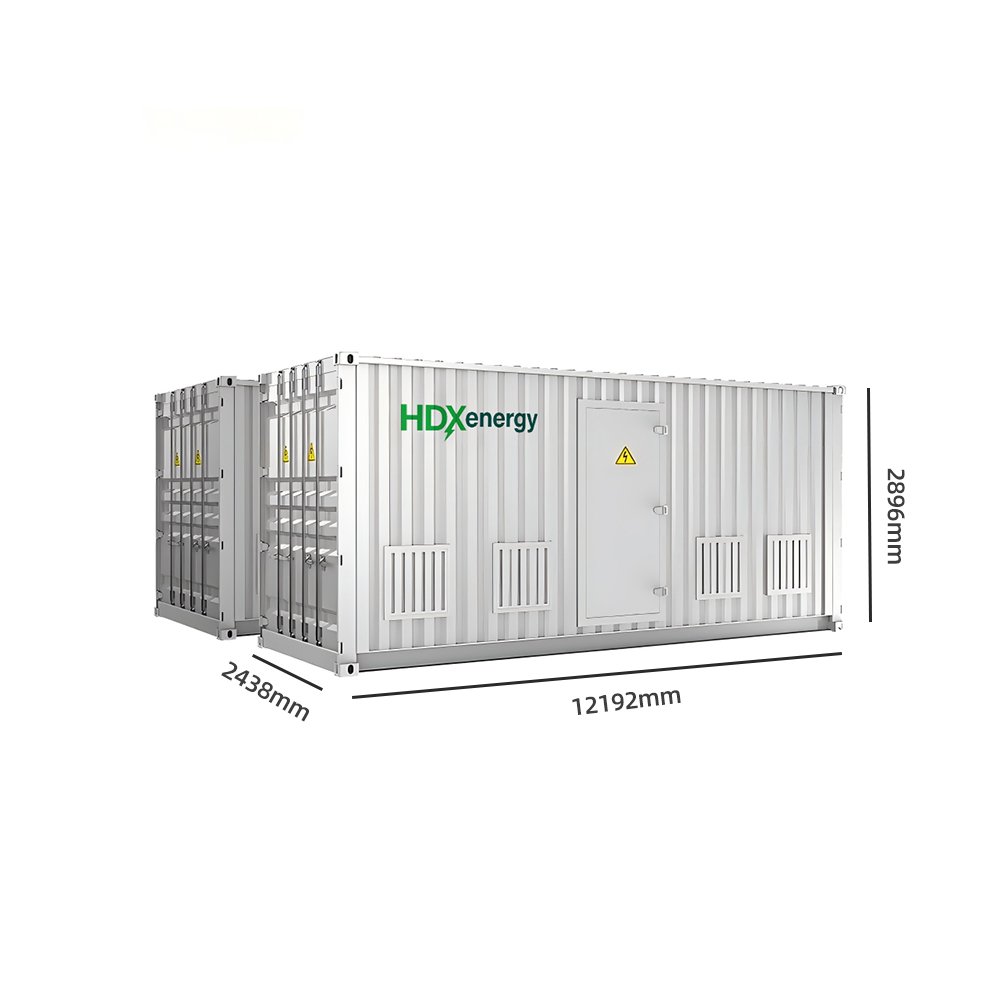

12192 × 2438 × 2896 mm, 32000 kg.
Thermal Management
Liquidcooling
Uniform battery-pack temperature, lower decay and longer system cycle life.
Overview
The containerized energy storage system is a fully integrated outdoor industrial battery energy storage container. Pre-assembled and fully tested in the factory, it combines lithium iron phosphate battery modules, BMS, PCS, liquid-cooling thermal management, fire suppression and monitoring inside a standard container. It delivers rapid on-site deployment, simple installation and low maintenance cost for utility and commercial projects.
All components are pre-installed at the factory. Only cable connection is needed on site, saving construction time and civil works.
Fully factory-tested before shipment
The built-in liquid cooling system keeps a consistent temperature across all battery packs, effectively reducing battery decay and extending system cycle life.
More uniform than air cooling on large packs
BMS real-time battery monitoring, fire protection system and certified enclosure design, with multi-layer safety protection throughout.
Certified to UL 9540A, CE and IEC
Custom power and capacity options are available to match different project requirements, from commercial sites to utility-scale parks.
Enclosure is waterproof, dustproof and anti-corrosion
Remote real-time system monitoring, regular system inspection and professional technical guidance, backed by a reliable product warranty.
Designed for long-term outdoor operation
Grid peak shaving, load shifting, demand response and power quality improvement for factories and mines.
Also suited to solar and wind storage

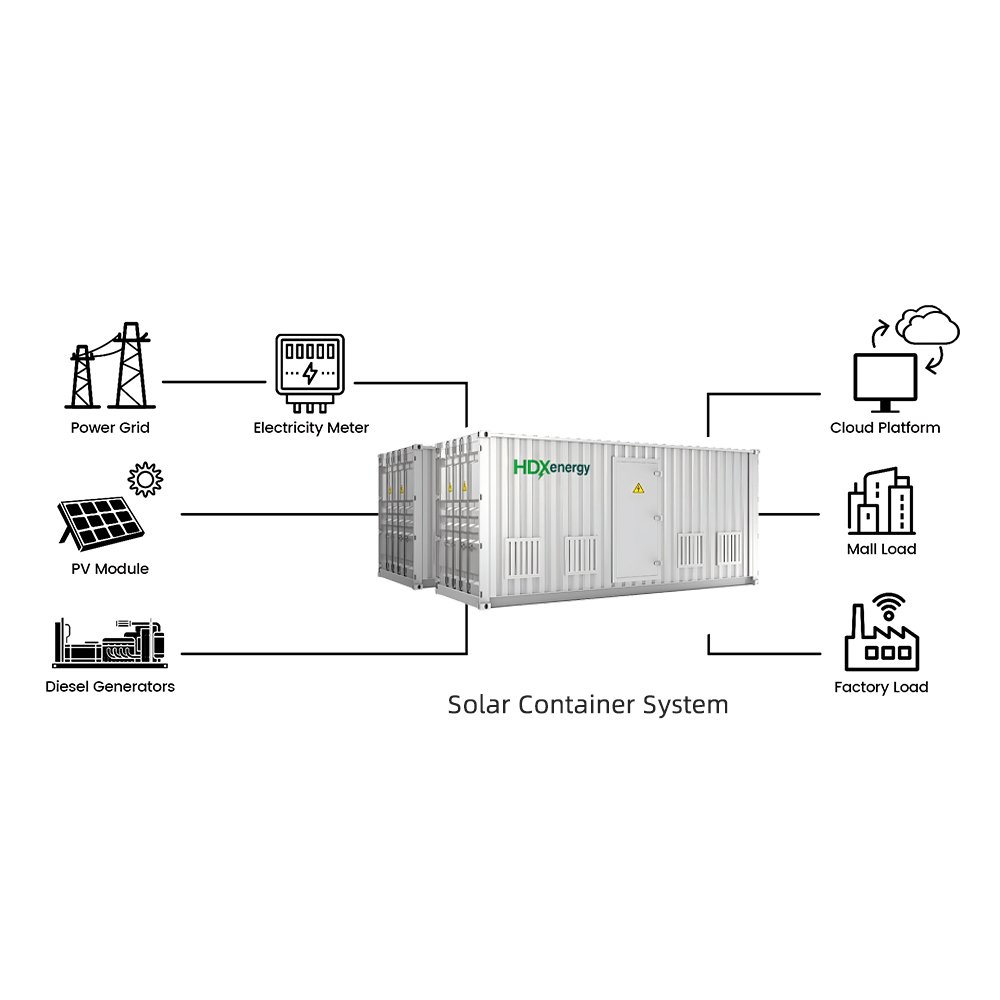

System Topology
The container sits at the center of your site’s power system: solar, grid and diesel generation feed it, and it serves your loads while reporting everything to the cloud.
Ground-mount or rooftop PV feeds the container. Excess solar generation is stored instead of curtailed, and released when it is worth more.
The utility grid charges the battery bank through the electricity meter at off-peak tariff. AC output 400V (−20% ~ +15%), 1444A rated current.
Existing diesel gensets keep running as backup — the BESS cuts their running hours and fuel burn, and covers loads while generators start.
Factory and mall loads are served around the clock, while the EMS reports operating data to the cloud platform over 4G for remote monitoring.
The whole flow is automatic: the energy management system decides when to charge, when to discharge and when to hold reserve capacity, so your facility always runs on the cheapest available power.

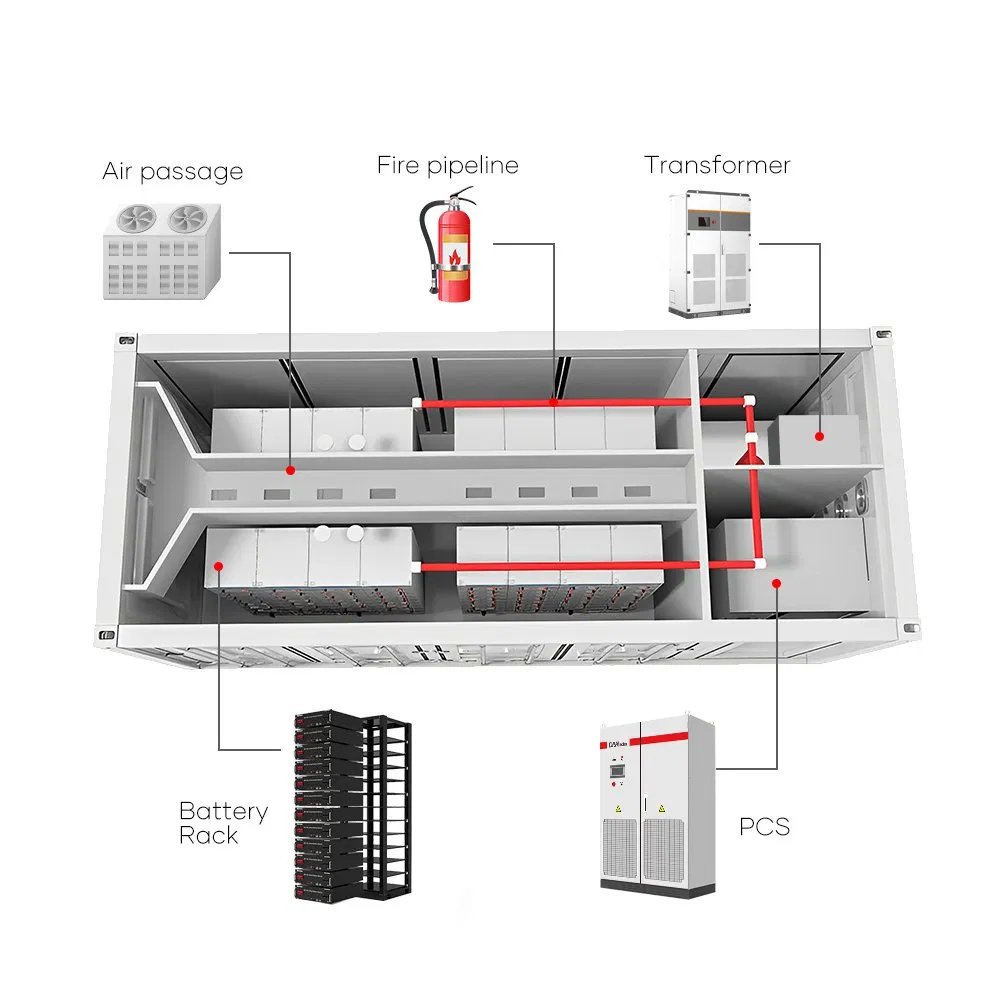

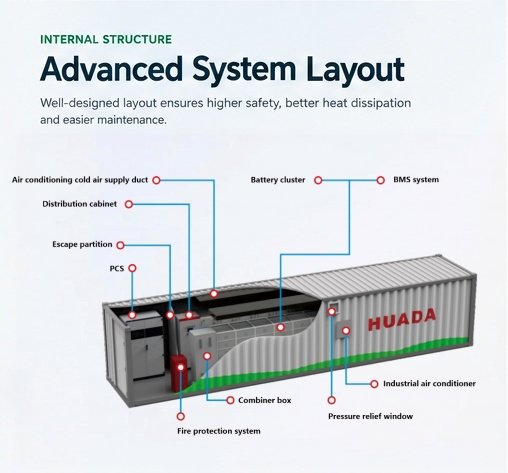

What’s Inside
A standard container integrating battery cluster, BMS, PCS, fire protection and liquid-cooling thermal management in one outdoor unit.
4480Ah / 704V battery bank rated 3153.9kWh inside the container.
Real-time battery monitoring and multi-layer protection, integrated with the fire protection system.
Rated 1MW (peak 1.1MW), 1444A rated / 1588A maximum AC current.
Keeps battery pack temperatures uniform, reducing decay and extending cycle life in hot, cold, coastal and desert environments.
Integrated fire protection with a certified enclosure designed for long-term outdoor duty.
Remote 4G monitoring of system status plus RS485 / CAN on the local bus.
Specifications
Complete technical parameters for the 1MW / 3153.9kWh container. Need a stamped datasheet for tender submission? Request it via the form at the bottom of this page.
| Item | H098-3MWh |
|---|---|
| System | |
| Product Model | H098-3MWh |
| Battery Capacity | 4480Ah / 704V (3153.9kWh) |
| Rated Power | 1MW |
| Peak Power | 1.1MW |
| Battery Type | LiFePO4 |
| Battery Cycle Life | Over 6000 cycles |
| Electrical | |
| Battery Voltage Range | 550–803V |
| AC Output Voltage | 400V (−20% ~ +15%) |
| AC Rated Current | 1444A |
| Maximum AC Output Current | 1588A |
| Communication | RS485 / CAN |
| Wireless Communication | 4G communication supported |
| Mechanical & Environment | |
| Dimensions (L×W×H) | 12192×2438×2896 mm (40ft container) |
| Weight | 32000kg |
| Thermal Management | Liquid cooling |
| Discharge Temperature | −20 °C ~ 50 °C |
| Charging Temperature Range | −5 °C ~ 50 °C |
| Storage Temperature | Recommended 0 °C ~ 45 °C |
| Protection & Certification | |
| System Protection | Over-temperature, over-voltage, over-current, over-charge, over-discharge, load short-circuit and overload protection |
| Certification Standards | UL 9540A, CE, IEC, UN38.3, MSDS, RoHS |
Specifications are subject to the documents shipped with each unit. Certifications can be provided on request to meet specific regional grid and project requirements.
Applications
Utility-scale storage for large industrial sites and renewable plants that need megawatt-hour capacity with liquid-cooled thermal management.
Shift energy from low-price periods to peak demand periods at scale.
Reliable backup power supply for production-critical loads.
Store renewable generation and dispatch it when the grid needs it.
Off-grid microgrid duty and demand response participation.
Stabilize supply for factories and mines with sensitive or heavy loads.
Modular blocks that scale from a single container to a storage park.
Packing & Delivery
The container leaves the factory fully pre-tested. On site it needs a prepared foundation, cable connection and grid tie — our team supports acceptance.
Capacity, grid connection and site conditions confirmed against your load profile and local tariff structure.
Scheduled per project
Built to the confirmed configuration, with cell and module batch records kept on file.
Scheduled per project
Every unit completes full-function FAT testing before shipment, with multiple QA re-tests.
Completed pre-shipment
Reinforced packing plus standard hoisting points, suited to sea and land transport.
Standard export packing
Shipping documents and parameter sheets travel with the unit; we support customs clearance and site acceptance.
Per shipping schedule
On-site wiring and grid connection, then onboarding to the cloud platform for remote monitoring.
Depends on site conditions
FAQ
The questions we are asked most often about this containerized energy storage system.
Get a Quote
Share your site type, location and approximate load, and we will come back with a capacity recommendation and a quotation.
