The H096-10kWh all-in-one battery comes from a professional LiFePO4 energy storage supplier, delivering safe and flexible home solar storage.
Key Features:
– High-voltage platform with 95% charge & discharge efficiency
– Easy installation with a mobile, flexible placement design
– Wide temperature tolerance for various environments
– Up to 6 modules in series for larger energy needs
– Lifespan of 6,000+ cycles with smart BMS control
– WiFi/GPRS remote monitoring included
Usable Capacity
20.48kWh
Four modules stacked in one tower — the largest H096 home configuration.
Nominal Voltage
204.8V
Series stack working across a 160V–233.6V window.
Footprint
637×387×1397mm
Full tower weighing 277.4 kg, still one compact column.
Cycle Life
3000+ cycles
More than 80% of the original capacity retained after 3000 cycles.
Overview

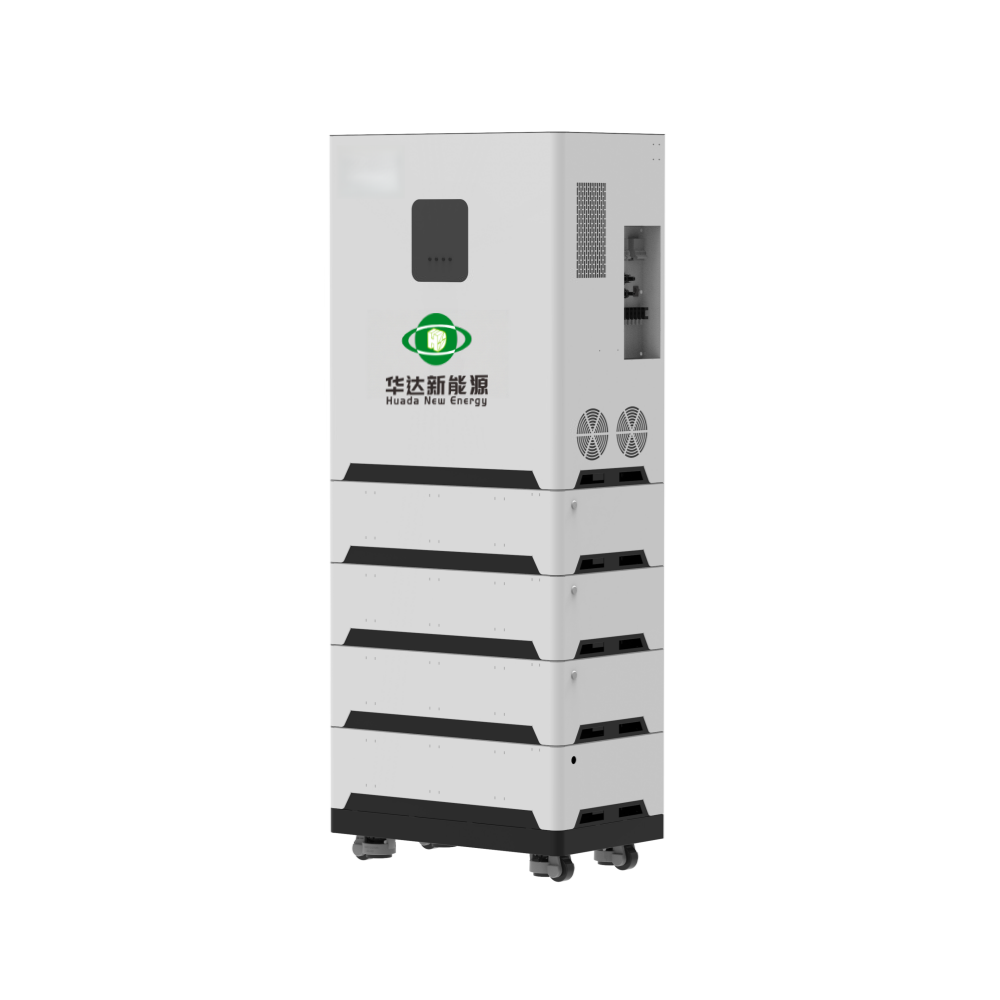

The four-module H096 stackable tower delivers 20.48kWh of usable LiFePO4 storage in a single column. It suits larger homes and villas whose evening and backup demand outgrows a single-module battery, without forcing a move to a separate plant cabinet. The inverter is integrated into the tower, so there is still no separate inverter to purchase or match, and capacity is reached by stacking modules rather than installing a new system.
Reach 20.48kWh on the same footprint logic as the smaller configurations.
Top of the H096 stackable range
A 204.8V nominal stack working across 160V–233.6V, keeping currents low.
Higher efficiency over long cable runs
Inverter built into the tower — no separate cabinet or matching exercise.
Fewer components to quote and install
Every module uses the same proven lithium iron phosphate chemistry.
Over 3000 cycles with 80%+ retained
Overcharge, over-discharge, short-circuit and thermal protection coordinated across modules.
Monitored at module level
WiFi and Bluetooth pairing keeps every tower value visible on your phone.
Remote checks without a site visit
System Topology
The tower sits between rooftop solar, the grid and your loads, with the inverter integrated in the stack. Wiring is limited to the L+N+PE grid connection and the RS485 / CAN link to existing equipment.
Surplus daytime generation charges the full tower before any export.
Grid connection type L+N+PE, with 110% overload capability for motor start-up.
A 204.8V nominal pack rated 20.48kWh, working across 160V–233.6V.
Converts stored DC to AC and manages the changeover during an outage.
WiFi and Bluetooth for direct status checks, RS485 / CAN for system integration.
What’s Inside
The four modules are matched, stacked and full-function tested together before shipment, so the tower arrives as one verified system.
Stacked to give 20.48kWh at 204.8V nominal.
Balancing and protection per module, coordinated across the whole stack.
Conversion and grid-tie logic inside the tower.
Mechanical and electrical interfaces engineered for the full four-module column.
Hard-wired link to hybrid inverters and energy management systems.
WiFi and Bluetooth connection to the mobile APP.
Specifications
Parameters for the four-module configuration. Smaller households can specify two or three modules on the same platform. Request a stamped datasheet through the form at the bottom of this page.
| Item | H096-(5-20)kWh stackable, 4 modules |
|---|---|
| System | |
| Product Name | H096-(5-20)kWh stackable |
| Battery Module | 51.2V / 5.12kWh / 51.8kg |
| Number of Modules | 4 |
| Battery Capacity | 20.48kWh |
| Installation Mode | Stackable |
| Battery Cycle Life | Over 3000 cycles, remaining capacity above 80% |
| Electrical | |
| Nominal Voltage | 204.8V |
| Battery Voltage Range | 160V – 233.6V |
| Max Charge / Discharge Current | 45A |
| Overload Capacity | 110% |
| Grid Connection Type | L+N+PE |
| Communication | RS485 / CAN |
| Communication Mode | WiFi and Bluetooth connection with mobile APP |
| Mechanical & Environment | |
| Dimensions (L×W×H) | 637 × 387 × 1397 mm |
| Weight | 277.4 kg |
| Charging Temperature | 0 °C ~ 50 °C |
| Discharge Temperature | −20 °C ~ 50 °C |
| Protection & Certification | |
| System protection | Over-temperature protection, over-voltage protection, over-current protection, over-charge protection, over-discharge protection and load short-circuit protection |
| Certification standards | CE / FCC / RoHS |
| Protection Level | IP20 |
Specifications follow the documents shipped with each unit. Capacity, branding, enclosure and communication protocol can be customized for OEM / ODM programmes.
Applications
Large homes, villas and small commercial sites that need multi-day backup or heavy evening loads covered without moving to a floor-mounted industrial cabinet.
Air conditioning, pool pumps and evening loads covered without importing power.
Essential circuits stay powered through long or repeated grid outages.
Store most of what a large rooftop array produces across the day.
One column serving shared services and prioritised tenant circuits.
Shift a large share of daily consumption into cheap tariff windows.
Sized once for the loads you expect over the next decade.
Packing & Delivery
Every unit completes full-function testing before packing, ships in reinforced export packaging and arrives ready to wire up.
Four modules confirmed against your consumption and essential-load list.
Before order
Modules matched and stacked, with cell batch records kept on file.
Per order schedule
Capacity, protection and inverter functions tested on the assembled tower.
Completed pre-shipment
Protective packing and export carton suitable for sea and land transport.
Standard export packing
Packing list, parameter sheet and wiring guidance travel with the tower.
Per shipping schedule
Placed and wired by a qualified installer, then paired with the mobile APP.
Depends on site conditions
