Our 12V 100Ah LiFePO4 battery is a direct drop-in replacement for traditional lead-acid batteries. Built with premium lithium iron phosphate cells, it delivers longer cycle life, lighter weight, higher safety and stable performance compared to lead acid batteries. No complicated modification required for installation, ideal for solar power systems, RVs, marine equipment, off-grid backup power and telecom standby power.
✅ Direct lead-acid battery replacement, simple plug-and-play installation
✅ Ultra-long cycle life: over 8000 cycles at 80% DOD
✅ Built-in intelligent BMS protection against overcharge, over-discharge, over-current and short circuit
✅ Lightweight design, about 50% lighter than equivalent lead acid battery
✅ Low self-discharge rate, excellent performance for deep cycle applications
✅ Stable output, wide operating temperature range
Solar energy storage, RV & camper van, boat & marine, off-grid home backup power, UPS, golf cart, traffic & telecommunication equipment.

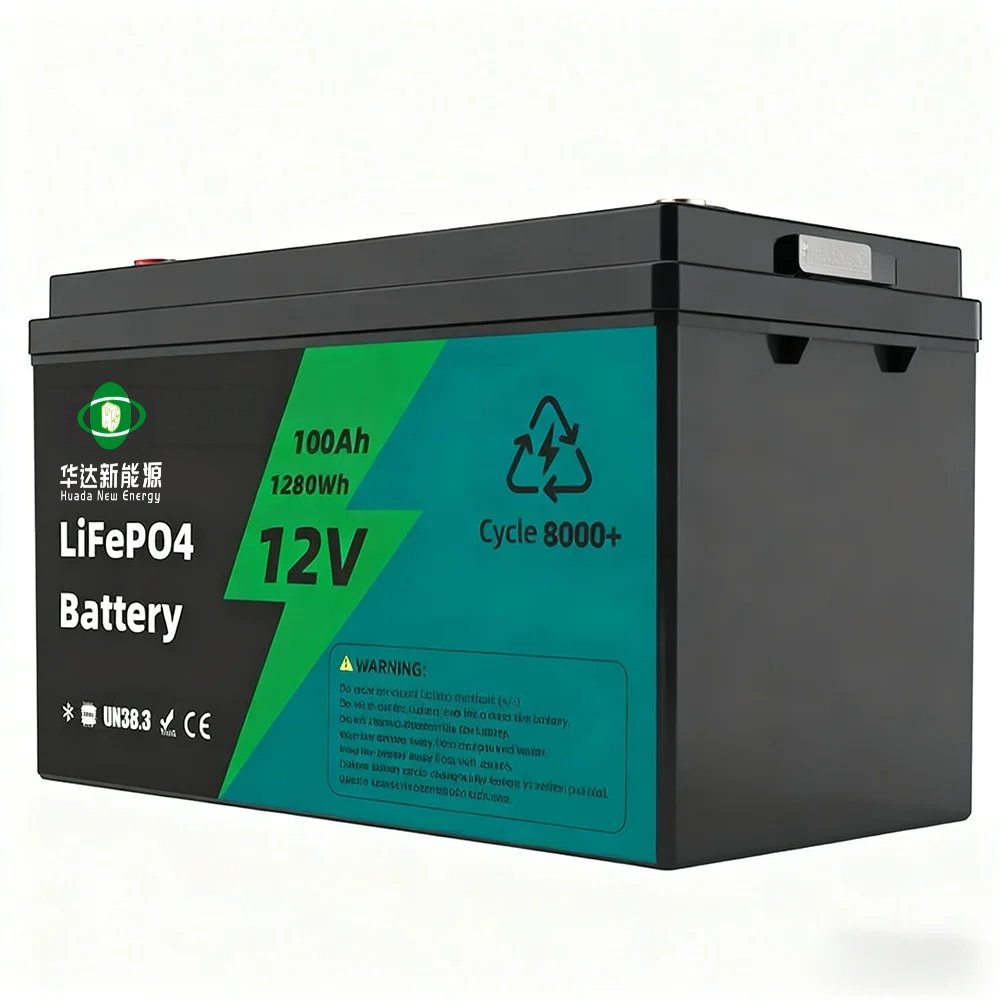

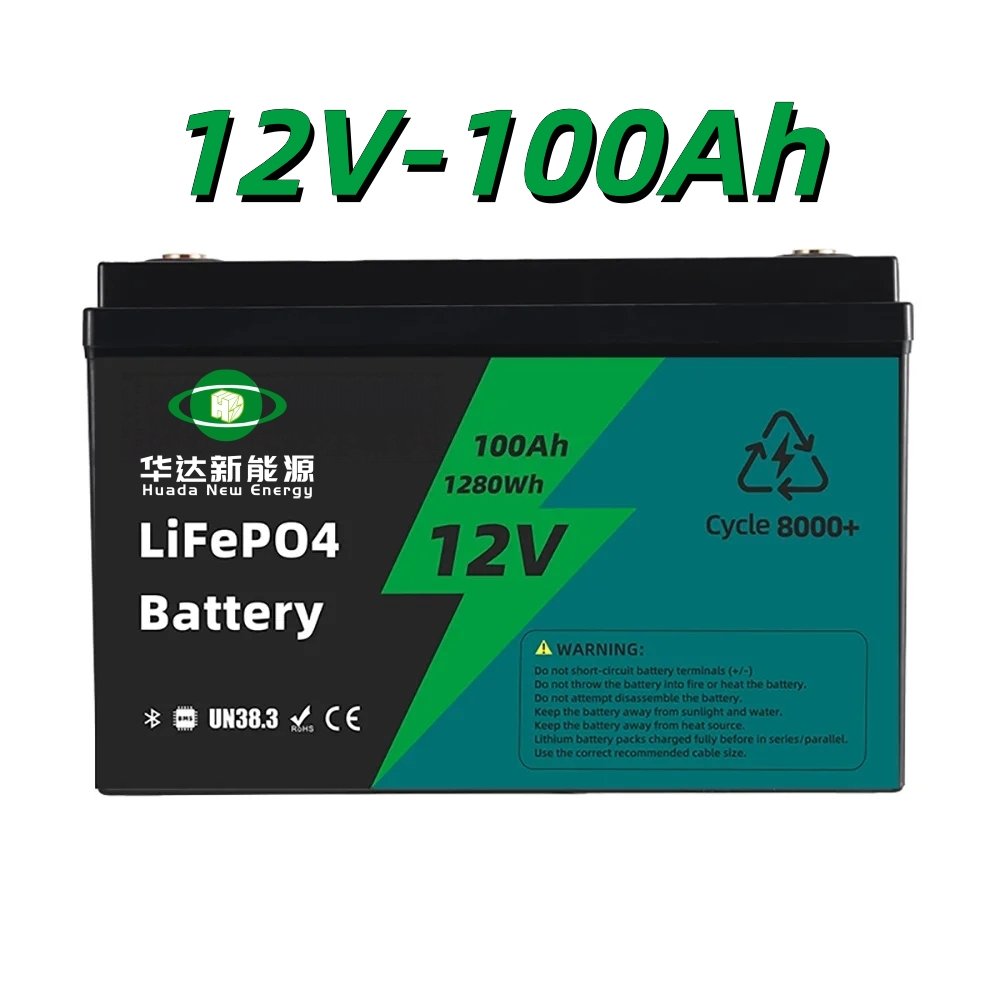

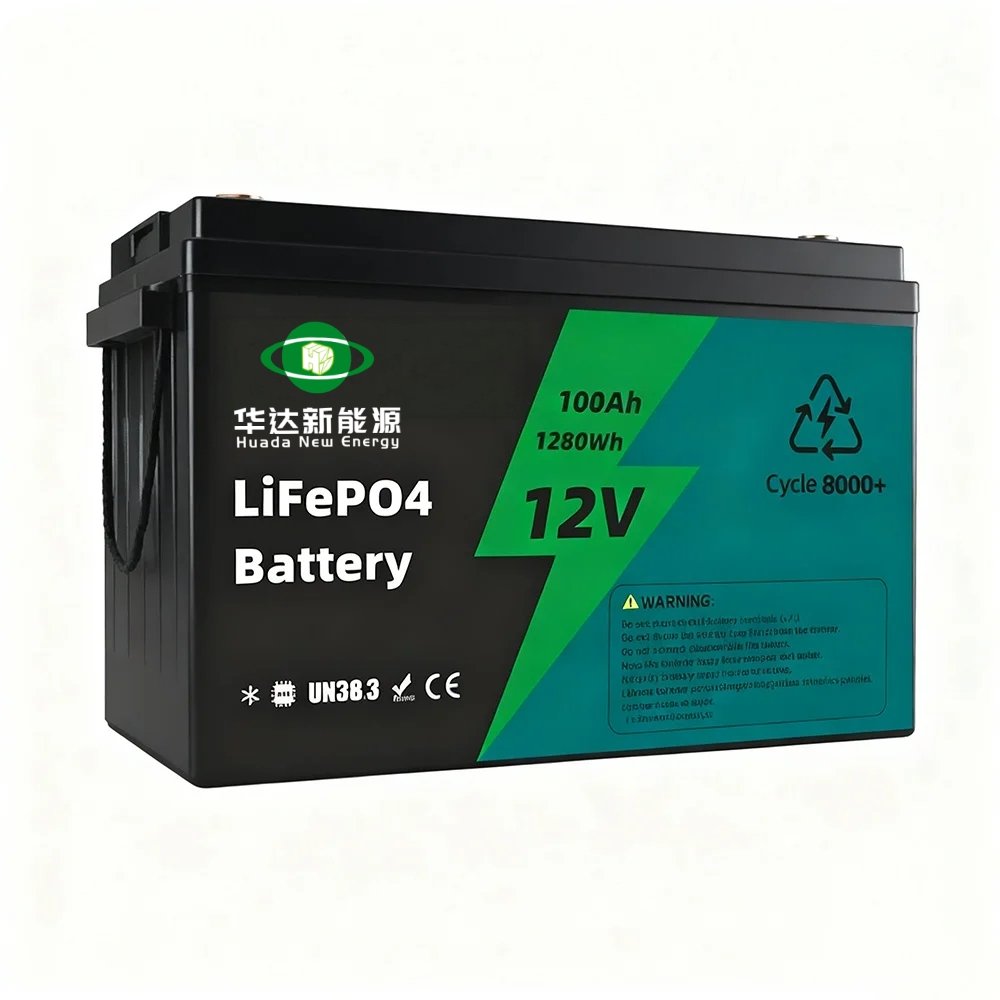

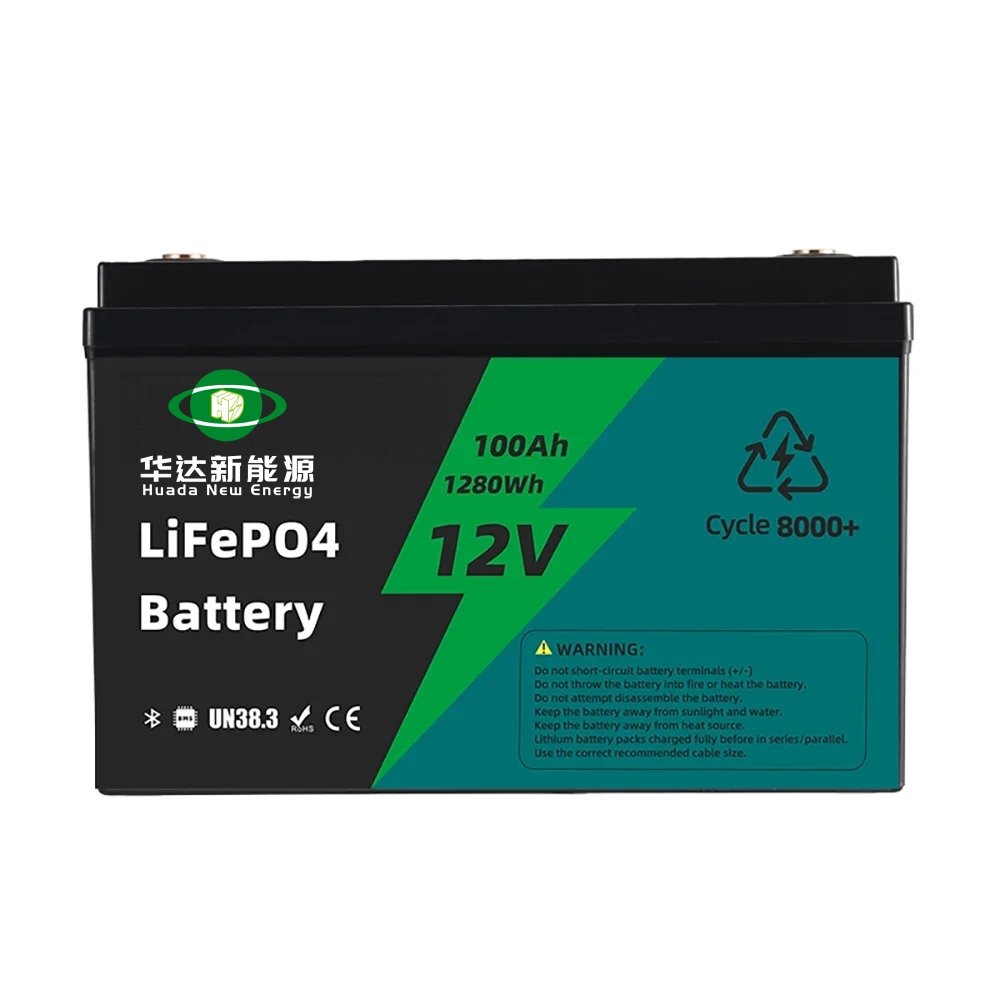

Huada 12V 100Ah lithium iron phosphate battery, drop-in replace lead-acid battery, ideal for home solar, RV and off-grid power systems with bluetooth monitoring
| Category | Item | Specification |
|---|---|---|
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 8000 Cycles @ 0.2C Charging/Discharging, Until 80% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| standard Charging | Max.Charging Voltage | 14.0~14.6V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 50A | |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 100A |
| Max. Continuous Current | 100A | |
| Max.Pulse Current | 200A(<3S) | |
| Discharging Cut-off Voltage | 10.0V | |
| Operating Condition | Charge Temperature | 0°C to 45°C(32°F to 113°F) @60±25% Relative Humidity |
| Discharge Temperature | -20°C to 60°C(-4°F to 140°F) @60±25% Relative Humidity | |
| Storage Temperature | 0°C to 45°C(32°F to 113°F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | LFP3.2V100Ah (4S1P) |
| Casing | Plastic | |
| Dimension(LWHTH) | 330×172×215mm | |
| Package Dimension | 360×210×260mm | |
| Weight | Approx. 10Kg | |
| Terminal | M8 |
Who We Are
Huada New Energy (Huizhou Huada Technology Co., Ltd.) is a professional energy storage manufacturer with a complete product portfolio — portable power stations, household energy storage systems and commercial & industrial (C&I) solutions. Starting from lead-acid battery production, we have grown into an advanced lithium technology manufacturer.
We are backed by multiple invention patents, utility model patents, design patents and High-Tech Enterprise certification. With a professional R&D team, modern production facilities and a global energy monitoring data center, we provide reliable OEM/ODM services for customers worldwide.
Advanced lithium battery manufacturer, upgraded from lead-acid production.
Reliable OEM/ODM services for customers worldwide.
Global energy monitoring data center for after-sales support.
High-Tech Enterprise certification with a full patent portfolio.
