12V 200Ah LiFePO4 Battery Supplier | 8000+ Cycles

Product Features

  1. Huada 12V 200Ah LiFePO4 battery, 2560Wh energy, over 8000 deep cycles.
  2. Built-in BMS protection, direct replacement for traditional lead-acid batteries.
  3. Widely used for home solar, RV, marine and off-grid emergency power supply.
  4. Support OEM & ODM customized service for your brand.

Product Description

Nominal Voltage

12.8V

LFP cells in a 4S1P configuration.

Rated Capacity

200Ah

2,560Wh of usable energy in a drop-in lead-acid footprint.

Cycle Life

8000+

At 0.2C charging / discharging, until 80% capacity.

Weight

22kg

About half the weight of the equivalent lead-acid battery.

UN38.3
CE
Drop-in Lead-Acid Replacement
Built-in BMS
IP55
Bluetooth Monitoring
OEM / ODM
Huada 12V 200Ah LiFePO4 Battery · lead-acid replacement series 12V / 24V
OEM / ODM customization for distributors and project buyers
Huada 12V 200Ah LiFePO4 battery - drop-in lead-acid replacement with 8000+ cycles and built-in BMS
Huada 12V 200Ah LiFePO4 battery — 2,560Wh, 8000+ cycles, built-in BMS

Overview

Double the capacity, ten years of service — a true drop-in lead-acid replacement

The Huada 12V 200Ah LiFePO4 battery is a direct replacement for traditional lead-acid batteries. Built with premium lithium iron phosphate cells and an integrated BMS, it delivers 2,560Wh of usable energy with longer cycle life, lighter weight, higher safety and stable output — no complicated modification required. Ideal for solar power systems, RVs, marine equipment, off-grid backup and telecom standby.

Plug-and-play replacement

Same voltage and installation size as lead-acid — install it directly without major changes to your system.

Drop-in fit for RV, marine and solar bays

8000+ cycle life

Over 8000 cycles at 80% depth of discharge — years of daily cycling, far beyond traditional lead-acid batteries.

Lower total cost per usable kWh

Built-in intelligent BMS

Full protection against overcharge, over-discharge, over-current and short circuit for safe operation.

Cell-level balancing included

200A continuous output

M8 terminals carry 200A continuous and 400A pulses (<3s) — runs bigger inverters and heavier loads.

High-current busbars inside

Low self-discharge

≤3.5% per month at 25 °C — ready to go even after long storage between seasons.

Excellent for seasonal and standby use

Wide operating range

Charges from 0 °C to 45 °C and discharges from −20 °C to 60 °C with stable output.

Deep-cycle performance in all seasons

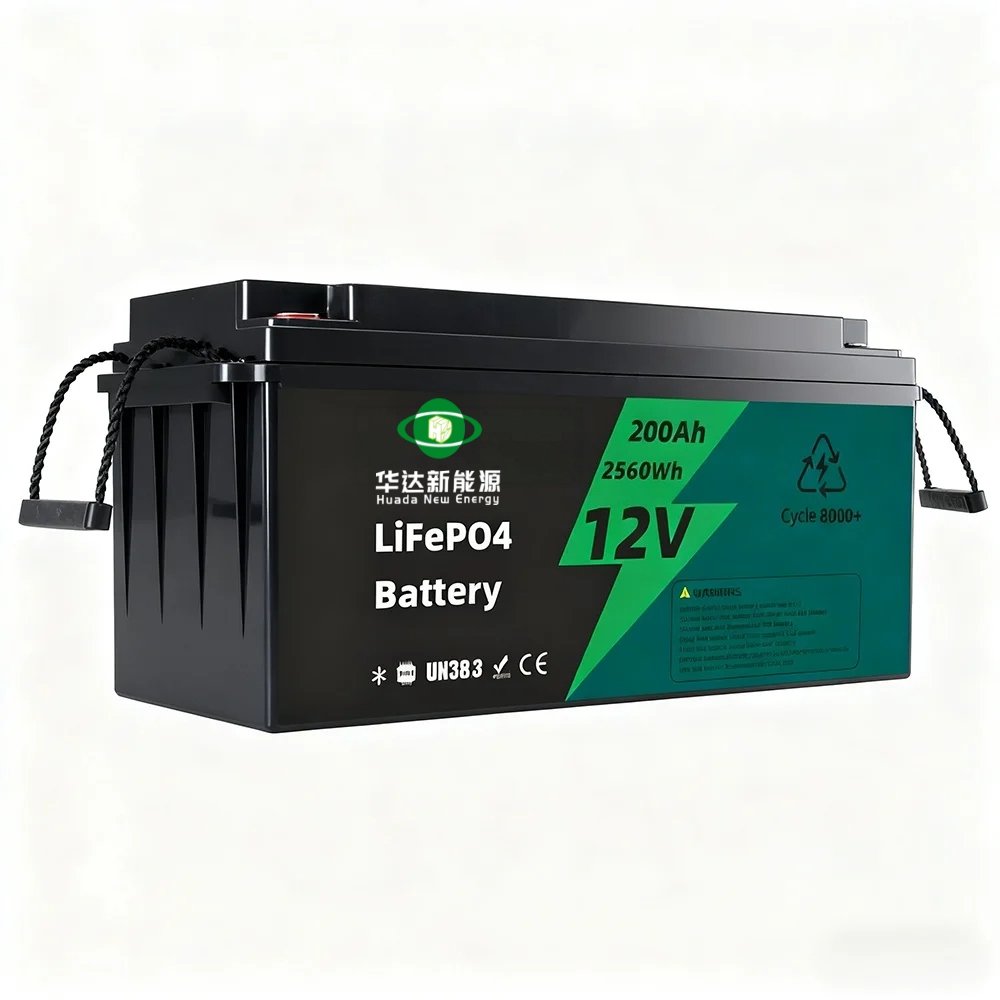

Huada 12V 200Ah LiFePO4 battery front view with 200Ah 2560Wh 12V label
12V · 200Ah · 2,560Wh · Cycle 8000+ · UN38.3 & CE certified

Inside the Battery

Premium prismatic cells, protected by a full-time BMS

Every Huada 12V 200Ah battery is built from grade-A prismatic LiFePO4 cells in a 4S1P configuration, managed by an integrated battery management system and housed in a rugged IP55-rated casing.

01

Grade-A prismatic LFP cells

Premium 3.2V LiFePO4 prismatic cells in a 4S1P configuration deliver a stable 12.8V nominal platform with ≤35mΩ internal resistance.

02

Intelligent BMS protection

Continuous protection against overcharge, over-discharge, over-current and short circuit, keeping every cell balanced over the battery’s life.

03

Rugged IP55 housing

Sealed plastic casing resists water and dust in RV bays, engine rooms and outdoor cabinets, from −20 °C to 60 °C.

04

M8 terminals, high-current output

Standard M8 terminals carry 200A continuous and 400A (<3s) pulses, supporting inverters and high-draw loads without voltage sag.

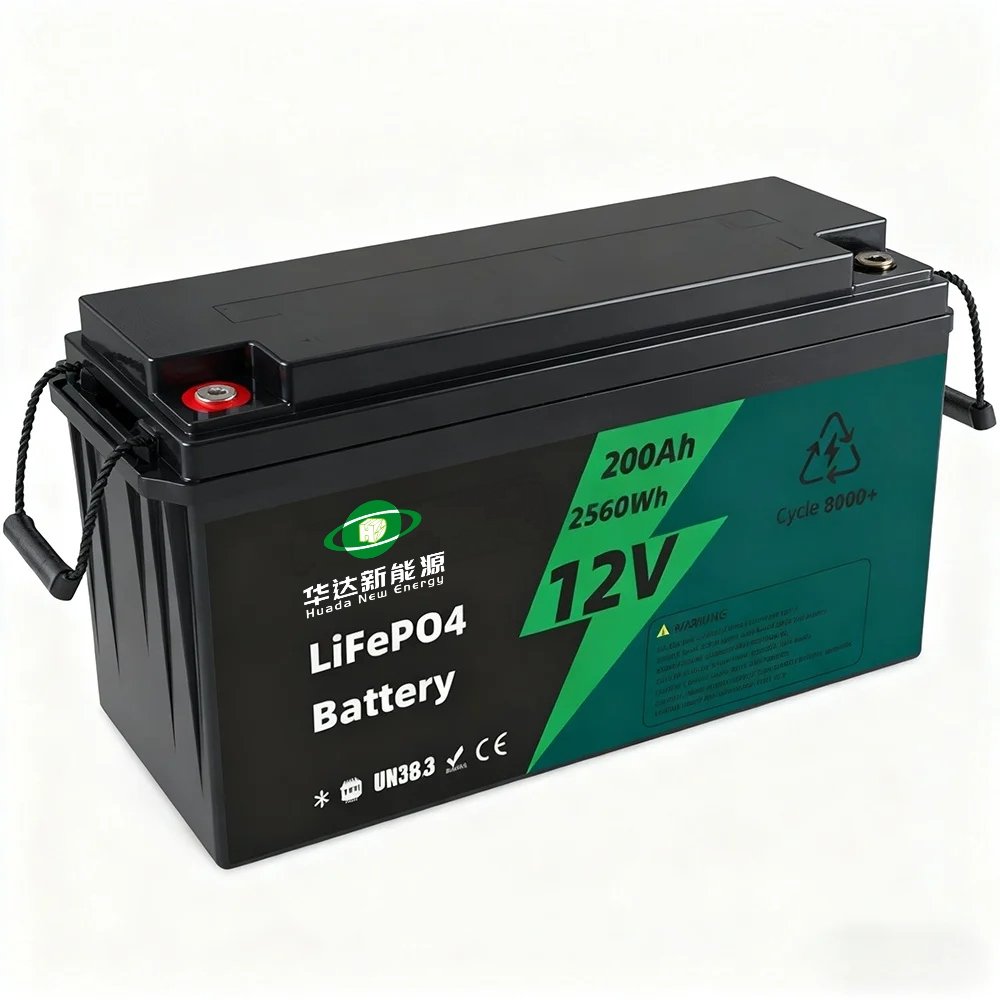

Huada 12V 200Ah LiFePO4 battery side view with M8 terminals and carry strap
M8 terminals · 200A continuous / 400A pulse (<3s) · IP55 casing

LiFePO4 vs Lead-Acid

Why buyers are switching to lithium

Same footprint, same terminals — but the numbers speak for themselves over a typical service life.

ItemHuada 12V 200Ah LiFePO4 BatteryLead-Acid (same size)
Cycle Life (to 80% capacity)8000+ cyclestypically 500–1500 cycles
Weightapprox. 22 kgapprox. 45 kg+
Self-Discharge (25 °C)≤3.5% per monthsignificantly higher
MaintenanceNone — fully sealedRegular checks & topping-up
Usable CapacityDeep discharge to 80% DODLimited by sag & sulfation
InstallationDrop-in, plug-and-playHeavy lifting & venting

Applications

One battery for every deep-cycle job

From rooftop solar to the open water — wherever lead-acid used to be the default, the Huada 12V 200Ah LiFePO4 battery is the upgrade.

Solar energy storage

Store excess solar generation by day and run your loads by night with 80% usable depth of discharge.

RV & camper van

Half the weight, twice the usable capacity and Bluetooth monitoring — more freedom off the grid.

Boat & marine

IP55 sealing and no acid leakage make it a safe house-battery upgrade for sailing and fishing boats.

Off-grid home backup

Parallel-ready capacity for cabins and off-grid homes, with stable output for inverters and appliances.

UPS & telecom standby

Low self-discharge and long float life keep standby systems ready month after month.

Golf carts & light EV

High pulse current handles hills and headwinds without voltage sag.

Sailing yacht with solar panel charging a 12V LiFePO4 battery bank
Marine solar charging — silent, maintenance-free power on the water

Specifications

Huada 12V 200Ah LiFePO4 Battery specifications

Complete technical parameters. Need a stamped datasheet for a tender or project submission? Request it via the form at the bottom of this page.

Item12V 200Ah LiFePO4 Battery
Electrical Characteristics
Nominal Voltage12.8V
Nominal Capacity200Ah
Energy2,560Wh
Internal Resistance≤35mΩ
Cycle Life8000 Cycles @ 0.2C charging / discharging, until 80% capacity
Self Discharge≤3.5% per month at 25 °C
Standard Charging
Max. Charging Voltage14.0–14.6V
Charging MethodAt 0–45 °C, CC to 14.6V at 0.2C, then CV at 14.6V until current ≤0.02C
Charging Current100A
Max. Charging Current200A
Standard Discharging
Discharging Current200A
Max. Continuous Current200A
Max. Pulse Current400A (<3s)
Discharging Cut-off Voltage10.0V
Operating Condition
Charge Temperature0 °C to 45 °C (32 °F to 113 °F) @60±25% RH
Discharge Temperature−20 °C to 60 °C (−4 °F to 140 °F) @60±25% RH
Storage Temperature0 °C to 45 °C (32 °F to 113 °F) @60±25% RH
Water &amp; Dust ResistanceIP55
Structure
Cell &amp; FormatLFP prismatic cells (4S1P)
CasingPlastic (IP55)
Dimension (L&times;W&times;H)480 × 170 × 240 mm
Package Dimension570 × 310 × 297 mm
WeightApprox. 22 kg
TerminalM8
CertificationUN38.3, CE

Packing & Delivery

Shipment-ready packaging, UN38.3 certified transport

Every battery ships in its own protective carton with terminal caps and foam inserts, packed to UN38.3 requirements for air and sea freight.

Individual carton

Package size 570 × 310 × 297 mm with foam protection and insulated terminal caps.

UN38.3 certified

Certified for air and sea transport as a Class 9 lithium battery shipment, documents included.

OEM / ODM

Custom logo, packaging, capacity and communication (Bluetooth / RS485 / CAN) options for your brand.

FAQ

Frequently asked questions

The questions we are asked most often about the 12V 200Ah LiFePO4 Battery.

Can this battery directly replace my old lead-acid battery?
Yes. It is specially designed as a lead-acid replacement. It shares the same voltage and installation size, so you can install it directly without major changes to your system.
What is the cycle life of this battery?
It delivers more than 8000 cycles at 80% depth of discharge — far longer than traditional lead-acid batteries, which typically last 500–1500 cycles.
Does this battery come with a built-in BMS?
Yes. An integrated BMS is built inside to protect the battery from overcharge, over-discharge, short circuit and overcurrent for safe operation.
What is your warranty policy for lithium batteries?
We provide professional after-sales warranty service. If quality issues occur within the warranty period, we will offer technical support and corresponding solutions.
Can you support OEM & ODM customization?
Yes. We support customized logo, packaging and capacity solutions to meet your project and branding requirements.

Get a Quote

Get a quotation for the Huada 12V 200Ah LiFePO4 Battery

Tell us your application, order quantity and target market, and we will come back with unit pricing, shipping options and certification documents.








We normally reply within one business day. Your details are used only for this enquiry.

Who We Are

About Huada Energy

Huada Energy (Huizhou Huada Technology Co., Ltd.) is a professional energy storage manufacturer with a complete product portfolio — portable power stations, household energy storage systems and commercial & industrial (C&I) solutions. Starting from lead-acid battery production, we have grown into an advanced lithium technology manufacturer.

We are backed by multiple invention patents, utility model patents, design patents and High-Tech Enterprise certification. With a professional R&D team, modern production facilities and a global energy monitoring data center, we provide reliable OEM/ODM services for customers worldwide.

Lithium Technology

Advanced lithium battery manufacturer, upgraded from lead-acid production.

OEM / ODM

Reliable OEM/ODM services for customers worldwide.

Global Monitoring

Global energy monitoring data center for after-sales support.

Certified Quality

High-Tech Enterprise certification with a full patent portfolio.
