Rated Energy
316.4kWh
Single-cabinet rated energy. Part of the H098 series spanning 50–315 kWh.
Rated Power
150kW
Integrated PCS, 3P+N+PE output, 400V three-phase.
Ingress Protection
IP55
Fully sealed outdoor enclosure, ready for direct ground installation.
Discharge Temp.
−20~55°C
Discharging range. Charging range 0–50 °C.
Overview

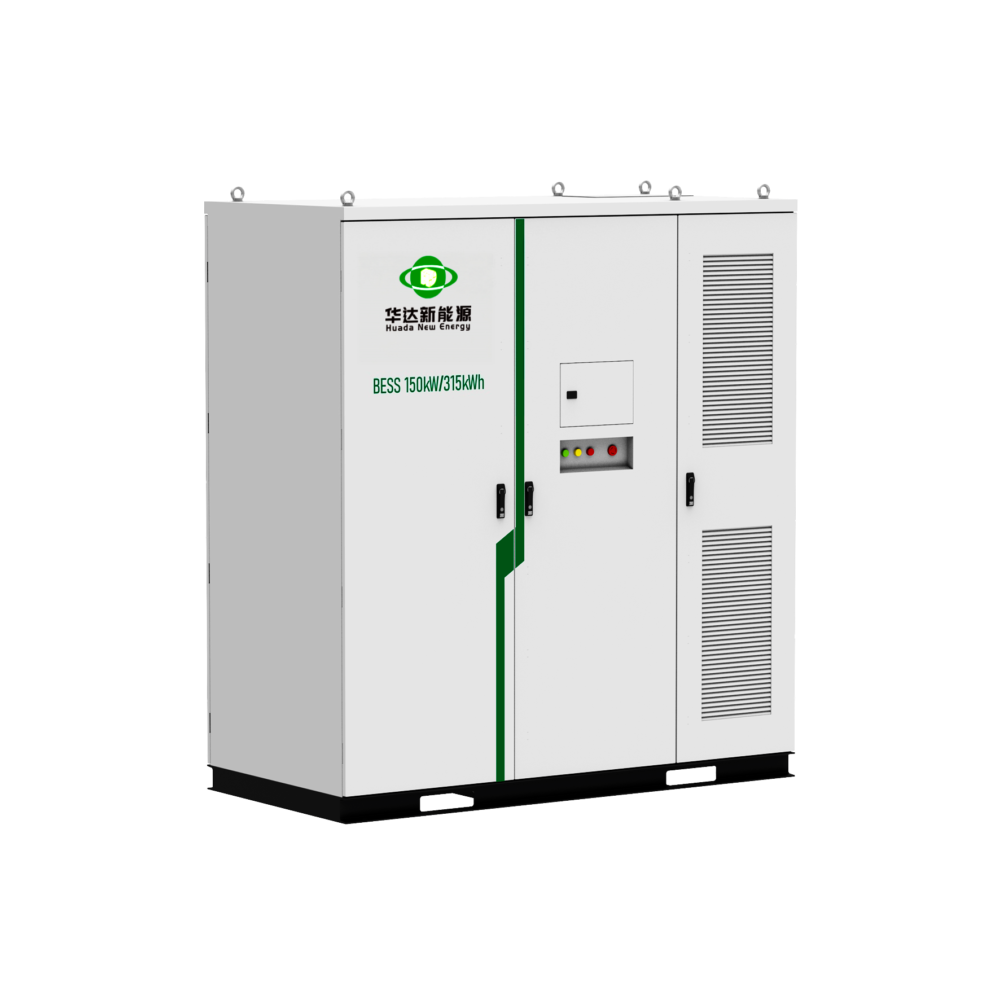

The H098-315kWh is a 316.4kWh battery energy storage system with an integrated 150kW power conversion system, packaged in one air-cooled outdoor cabinet. It is built for facilities with heavy, continuous electricity demand — factories, industrial parks, cold storage, large commercial buildings and EV charging plazas — where peak demand charges and grid instability hit operating costs directly.
Charging from the grid at off-peak tariff or directly from solar panels, the system discharges during peak hours to shave demand spikes, keeping electricity costs under control while providing 315kWh of usable storage capacity for backup and energy arbitrage.
The cabinet format installs in a fraction of the time of a shipping-container BESS, using standard lifting equipment — no civil works, no secondary integration on site.
Air-cooled thermal management keeps the structure simple: no liquid-cooling loop, no coolant top-up, no leak risk.
Battery, power conversion and energy management sit in one enclosure, fully commissioned at the factory. On site you only run cables, connect to the grid and power up.
No separate PCS cabinet, no multi-vendor protocol integration
Air cooling keeps the structure simple, reliable and maintenance-friendly. No liquid-cooling loop, no coolant top-up and no leak risk, so the O&M threshold and long-term cost are both lower.
Well suited to C&I sites without a dedicated O&M team
A built-in MPPT accepts up to 850V with a 200–950V working range, so commercial rooftop solar connects directly — pushing self-consumption higher.
PV charging and off-peak charging run in parallel
Charge on the off-peak tariff or from solar, discharge at peak. Monthly demand spikes are flattened, bringing down both demand charges and peak-rate energy costs.
Peak-valley arbitrage plus demand management
Track operating parameters, alarms and energy data from a phone or computer anywhere in the world. Local communication is RS485 / CAN.
No need to visit the site to read the meter

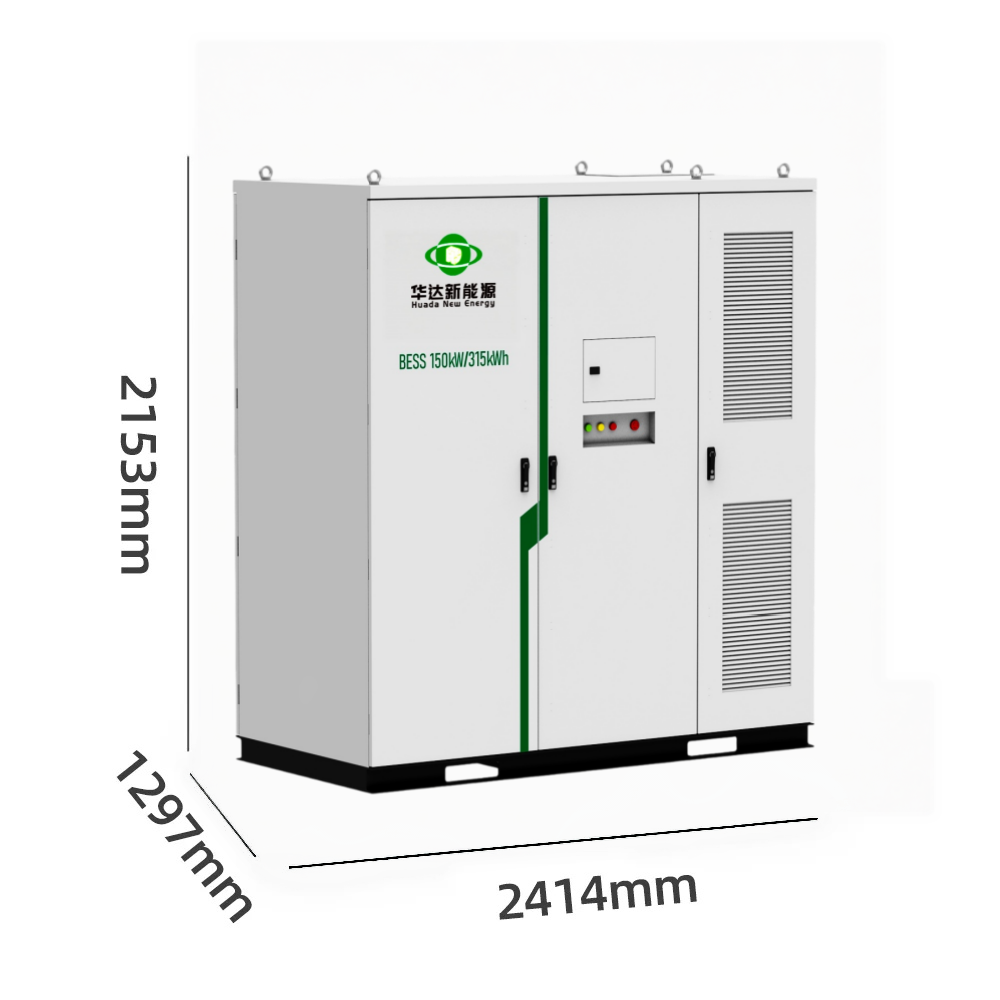

2153 × 1297 × 2414 mm and 3500 kg — the same cabinet envelope as the 215kWh model, carrying 47% more usable energy.
Certified to IEC 63056 / IEC 62477-1 / IEC 62933 and Malaysian SIRIM

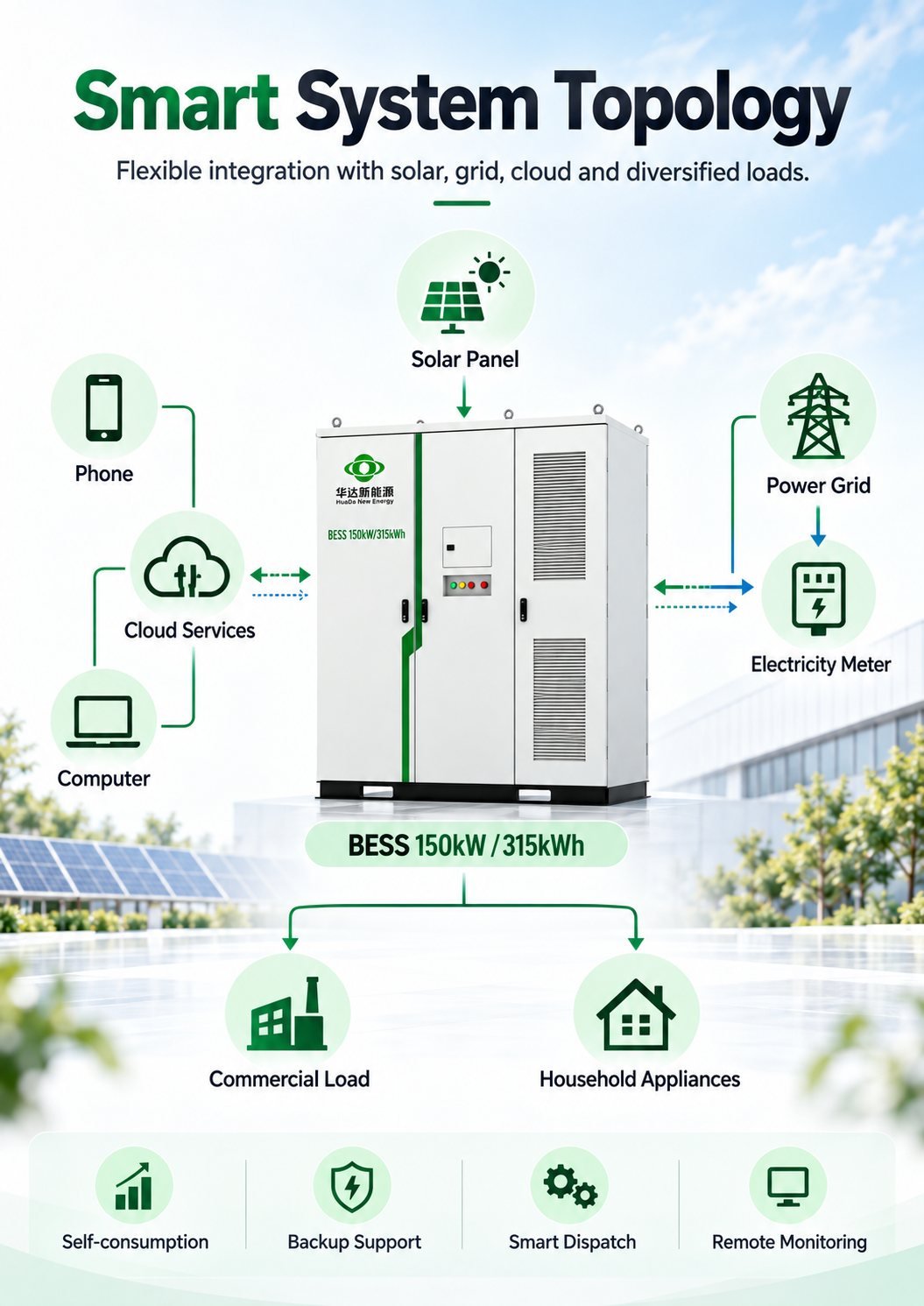

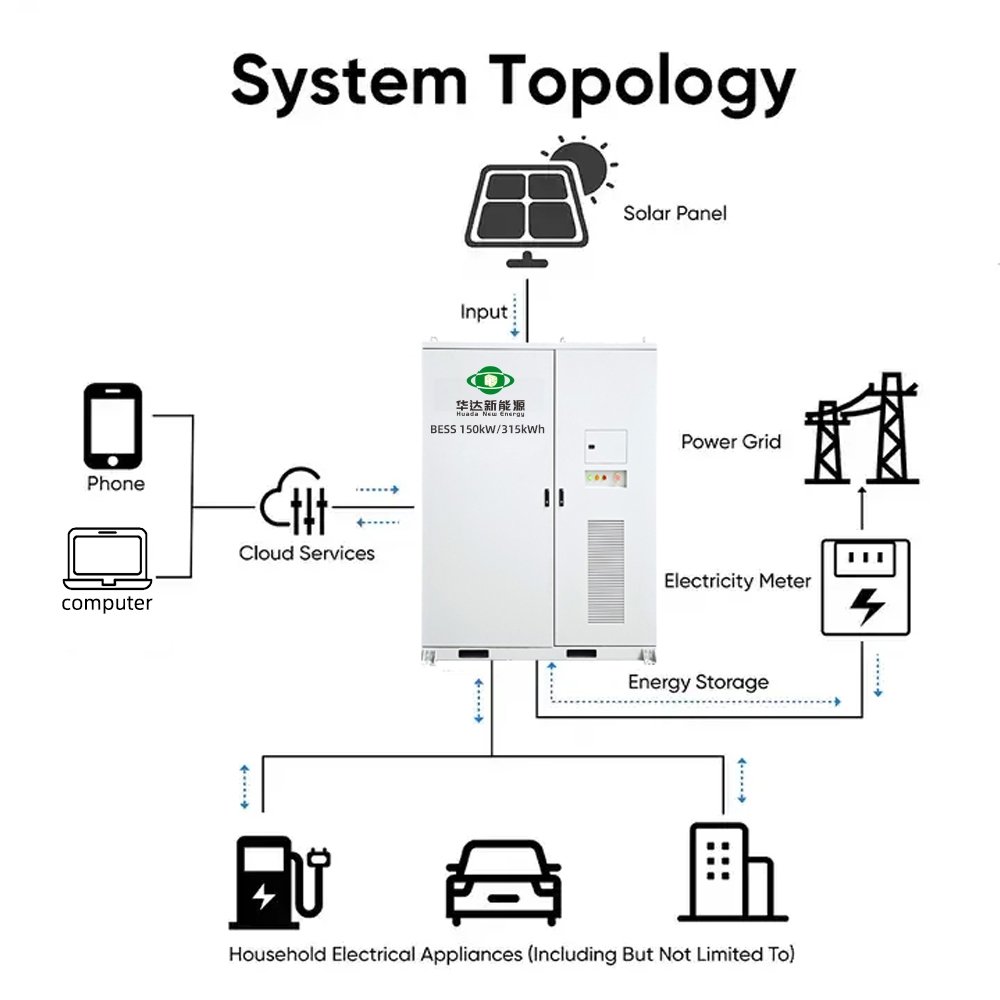

System Topology
In a typical installation the cabinet connects four ways — solar in, grid in, cloud out and loads out — and the energy management system decides the flow automatically.
Rooftop or ground-mount solar feeds the cabinet through the built-in MPPT — 200–950V working range, 850V maximum input voltage, up to 240kW PV power.
The power grid charges the batteries at low tariff through the electricity meter. 3P+N+PE, AC400V, 50 / 60Hz.
The EMU reports every parameter in real time to the cloud, so the system is monitored from a phone or computer anywhere in the world.
Stored energy powers your loads — production lines, air conditioning, refrigeration or EV chargers — whenever electricity is expensive or the grid fails.
The whole flow is automatic: the energy management system decides when to charge, when to discharge and when to hold reserve capacity, so your facility always runs on the cheapest available power.

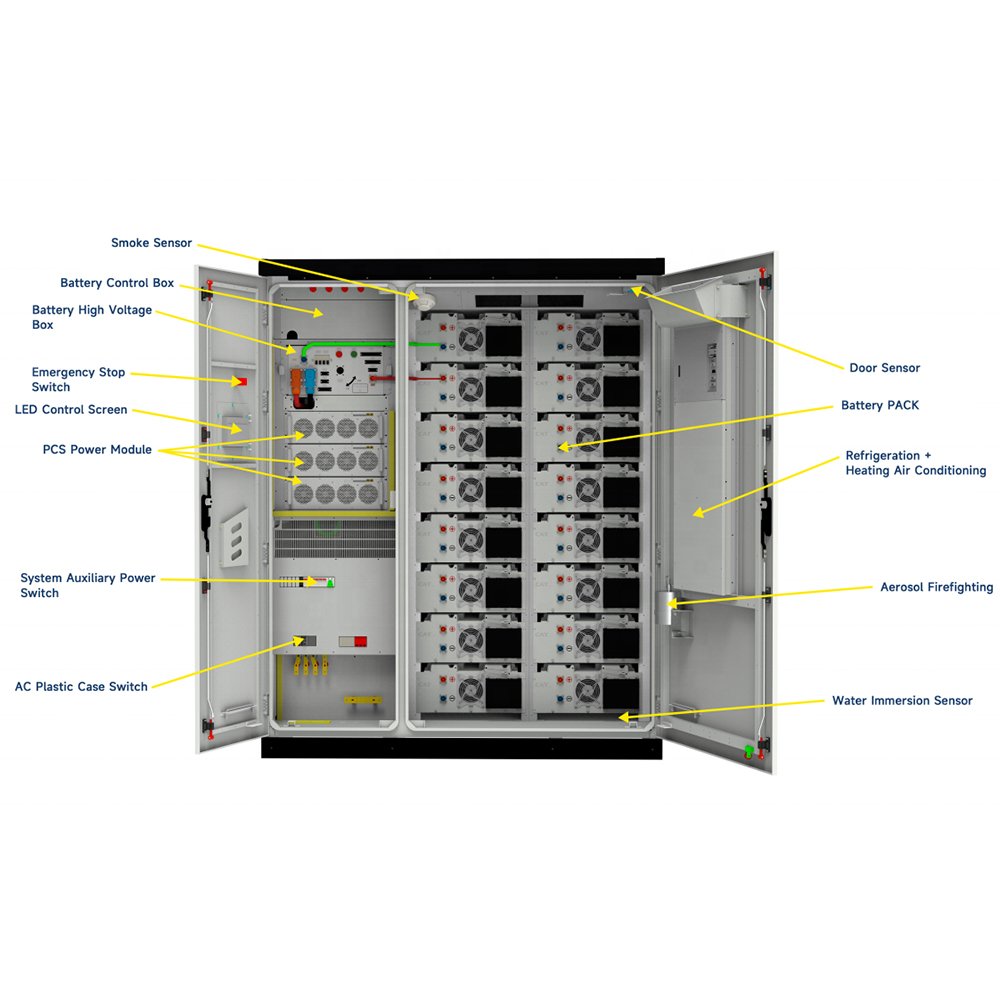

What’s Inside
The air-cooled outdoor enclosure packs the entire system into one unit, fully function-tested before it leaves the factory, ready to run on arrival.
316.4kWh rated energy, 412Ah rated capacity, 768V DC platform, voltage range 672–864V DC.
Cell-level and module-level monitoring, balancing and protection, reporting live status to the EMS and the cloud platform.
Bidirectional conversion, 150kW rated power, 276A rated output current, 3P+N+PE / AC400V / 50–60Hz output.
Up to 240kW PV input, 850V maximum, MPPT working range 200–950V, load voltage range 650–750V.
Automatically decides charging, discharging and reserve capacity, running to peak-valley tariffs and demand targets.

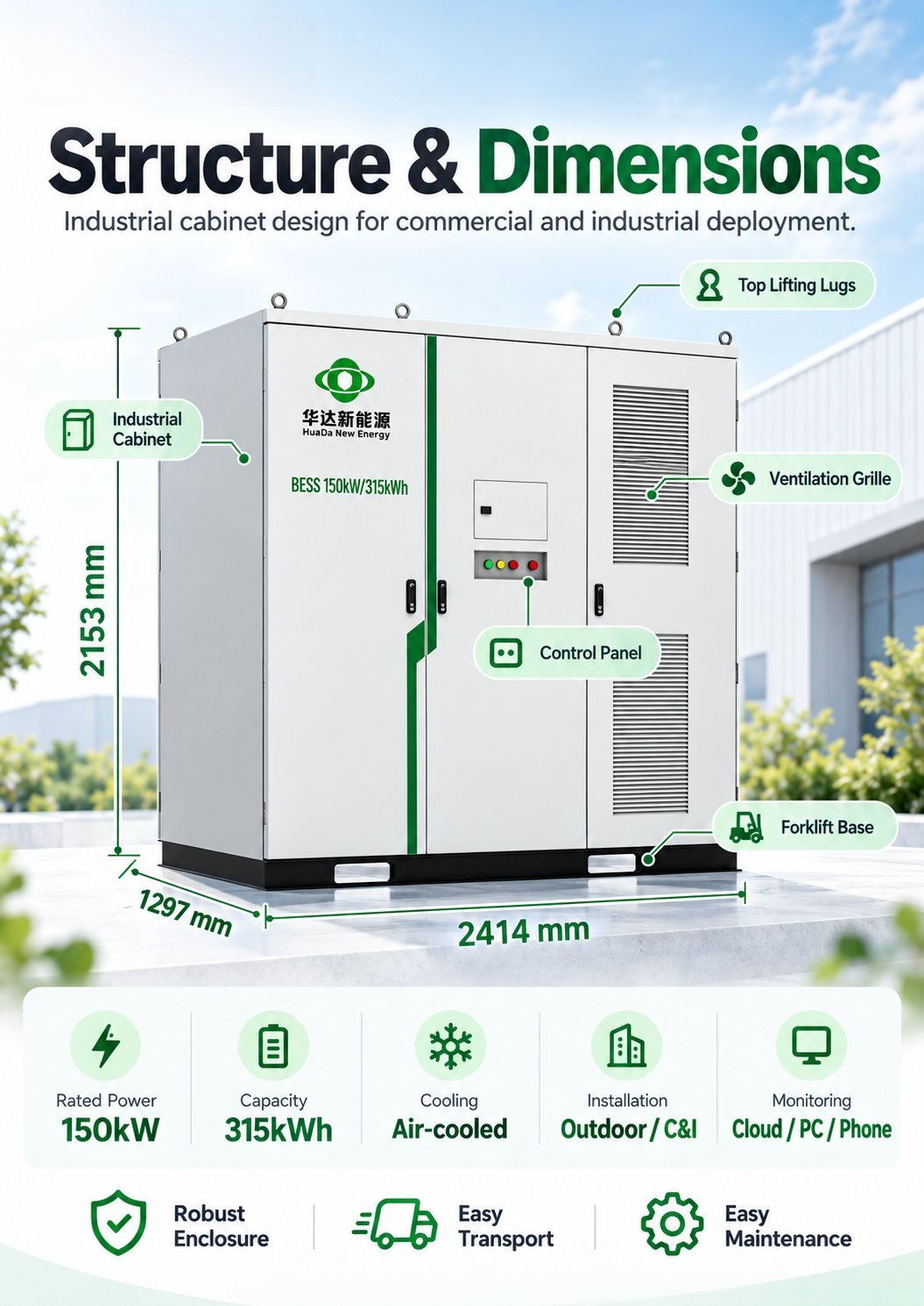

IP55 protection, maximum altitude 2000m, 2153 × 1297 × 2414 mm, 3500 kg.
Specifications
Complete technical parameters for the 150kW / 316.4kWh cabinet. Need a stamped datasheet for tender submission? Request it via the form at the bottom of this page.
| Item | H098-315kWh |
|---|---|
| Battery System | |
| Rated Voltage | 768V DC |
| Voltage Range | 672–864V DC |
| Rated Capacity | 412Ah |
| Rated Energy | 316.4kWh |
| Rated Charging Current | 206A |
| Rated Discharging Current | 206A |
| AC Side | |
| Rated Power | 150kW |
| AC Output Voltage | 320–460V |
| Rated Input / Output Voltage | 3P+N+PE; AC400V |
| Rated Frequency | 50Hz / 60Hz |
| Rated Output Current | 276A |
| PV Input | |
| Max. PV Input Voltage | 850V |
| Max. PV Power | 240kW |
| MPPT Working Voltage Range | 200–950V |
| MPPT Load Voltage Range | 650–750V |
| Mechanical & Environment | |
| Dimensions (W×D×H) | 2153×1297×2414 mm |
| Weight | 3500kg |
| Max. Altitude | ≤2000m |
| Protection Rating | IP55 |
| Charging Temperature | 0 °C ~ 50 °C |
| Discharging Temperature | −20 °C ~ 55 °C |
| Communication | RS485 / CAN |
| Certification | |
| Standards | IEC 63056 / IEC 62477-1 / EN 61000-6 / IEC 62933-5-2:2020 / IEC 62933-2-1:2017 / RoHS 2.0 / UN38.3 / MSDS |
| Regional | Malaysian SIRIM — MyHIJAU Mark |
Specifications are subject to the documents shipped with each unit. For a stamped datasheet for tender submissions, request it via the form at the bottom of this page.
Who It Is For
This 315kWh battery energy storage system suits owners of medium-to-large facilities with heavy, continuous loads — and installs far faster than a containerized BESS.
Manufacturing plants running two or three shifts, cold storage and logistics operators with round-the-clock loads, shopping centres and hotels with strong daytime peaks, and EV charging operators who need substantial buffer capacity.
Compared with a shipping-container BESS, the cabinet format installs in a fraction of the time with standard lifting equipment — no civil works and no secondary integration.
If your site already needs more than one 215kWh unit, a single 315kWh cabinet usually saves both footprint and installation cost.
Applications
Built for factory owners facing demand charges, operators in regions with unstable grids, solar installers who need storage for commercial rooftop projects, and EV charging operators who want to buffer peak-hour grid draw.
Peak shaving and demand charge reduction, avoiding expensive peak-rate draw.
Backup power for critical loads, combined with tariff optimization.
Buffer grid draw during peak hours, easing instantaneous load and demand spikes.
The built-in MPPT connects directly, pushing PV self-consumption higher.
Keeps production equipment, air conditioning and lighting running through an outage.
Centralized demand management that relieves transformer capacity pressure.
Packing & Delivery
Reinforced export packaging with standard hoisting points protects the unit during sea and land transport, and our quality team runs multiple rounds of testing before delivery.
Capacity, grid connection and site conditions confirmed against your load profile and local tariff structure.
Scheduled per project
Built to the confirmed configuration, with cell and module batch records kept on file.
Scheduled per project
Every unit completes full-function FAT testing before shipment, with multiple QA re-tests.
Completed pre-shipment
Reinforced packing plus standard hoisting points, suited to sea and land transport.
Standard export packing
Shipping documents and parameter sheets travel with the unit; we support customs clearance and site acceptance.
Per shipping schedule
On-site wiring and grid connection, then onboarding to the cloud platform for remote monitoring.
Depends on site conditions
