Usable Capacity
14.33kWh
280Ah / 51.2V LiFePO4 pack for households with higher evening demand.
Footprint
460×245×760mm
Floor-standing cabinet weighing 120 kg, still a small footprint.
Expandable
up to 16units
Stackable design — capacity can grow with your household load.
Cycle Life
3000+ cycles
Long-cycle LiFePO4 with a service life of up to 12 years.
Overview

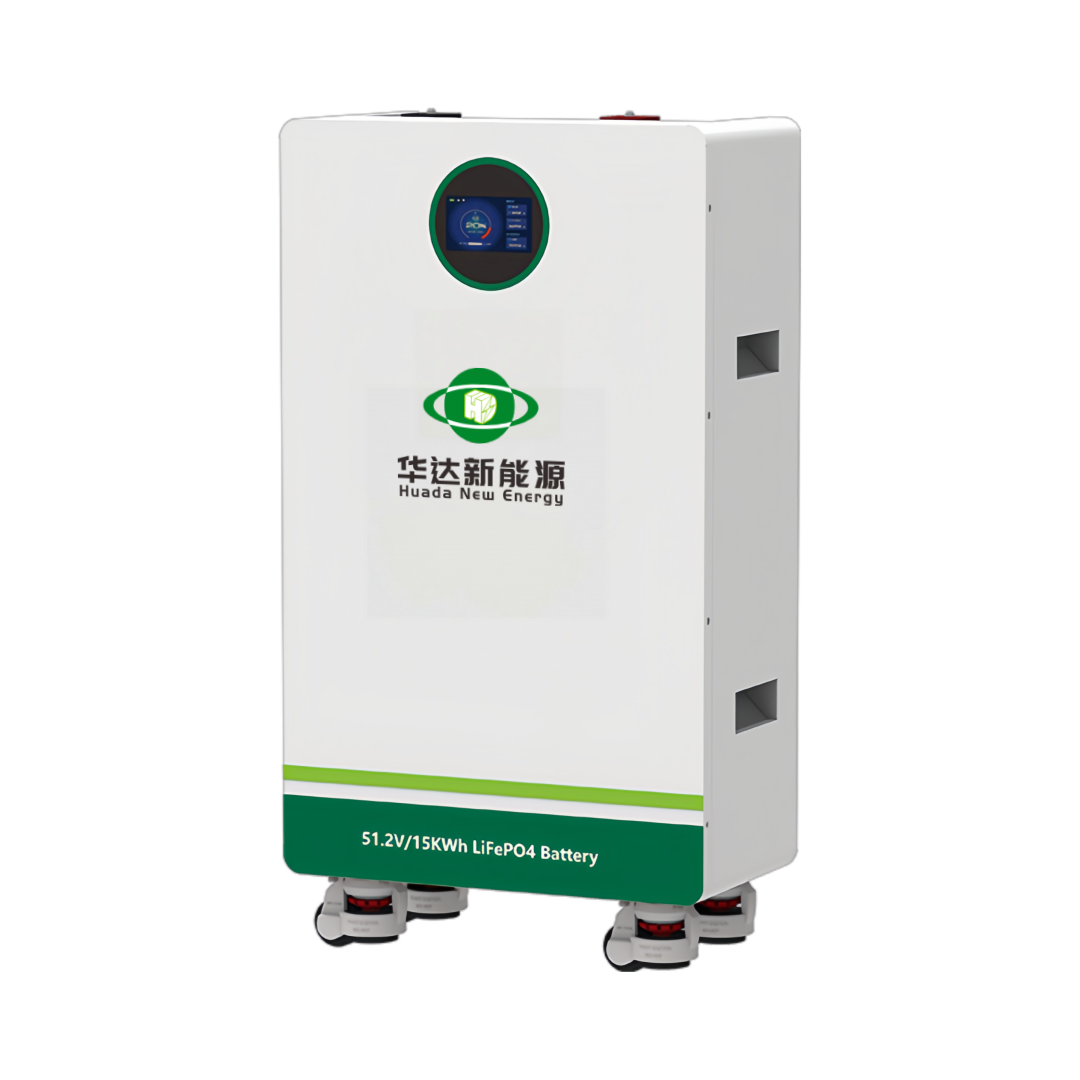

The H096-15kWh home energy storage battery is a floor-standing lithium battery for residential backup and solar storage. Built around a 280Ah / 51.2V LiFePO4 pack rated 14.33kWh, it carries larger evening loads and longer outages than a starter battery, while keeping the same compact footprint. The stackable design lets capacity grow later, and plug-and-play wiring keeps installation straightforward for a qualified installer working on an existing home solar system.
Lithium iron phosphate cells rated for over 3000 cycles with more than 80% capacity retained.
Service life up to 12 years
Multiple units can be stacked so capacity follows your household demand instead of a fixed choice.
Expand up to 16 units
Full electrical protection covering temperature, voltage, current and load short circuits.
Monitored continuously, cell by cell
Designed to drop into a home solar system without bespoke wiring harnesses.
Less time on site for the installer
Pair the mobile APP directly to check state of charge, voltage and status.
No gateway hardware required
Essential values stay readable on the cabinet even when the phone is not to hand.
Quick checks during maintenance
System Topology
The battery connects alongside your rooftop solar and the utility grid. It absorbs surplus PV output, tops up from cheap off-peak grid power, and carries the essential circuits when the grid fails.
Surplus daytime generation is stored rather than exported at a low feed-in rate.
Fills the battery in cheap tariff windows and takes any surplus export.
A 280Ah / 51.2V LiFePO4 pack rated 14.33kWh, working across a 40V–58V window.
Converts stored DC to AC and manages the switch to backup power.
Additional cabinets can be added later as the household load grows.
What’s Inside
Assembled, inspected and full-function tested before shipment, so the installer only places it, wires it and switches it on.
Rated 14.33kWh and working inside a 40V–58V voltage window.
Protection against temperature, voltage, current and short-circuit faults.
Interfaces prepared so further units can be added without rewiring.

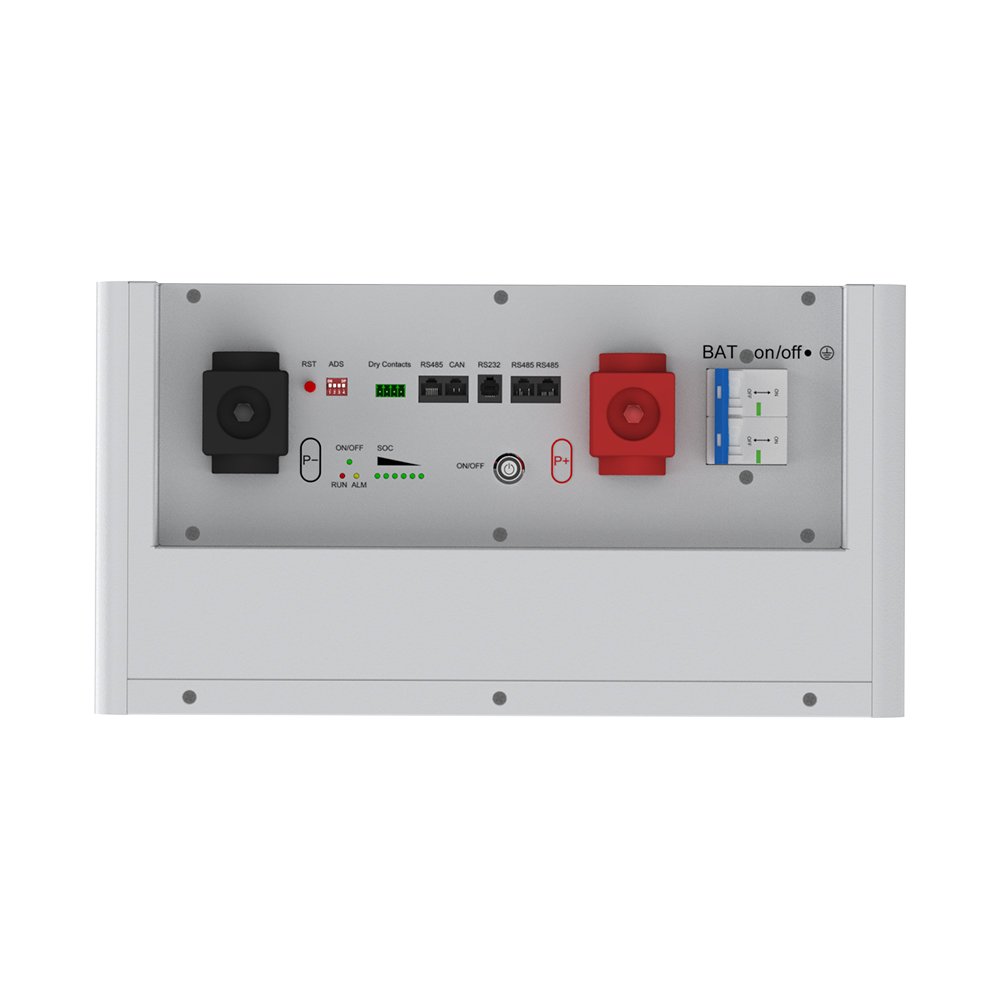

State of charge, voltage and alarms shown directly on the cabinet.
Standard wired link to hybrid inverters and energy management systems.
WiFi and Bluetooth connection to the mobile APP.
Specifications
Complete parameters for the 14.33kWh unit. Need a smaller cabinet first? The same series covers 5.12kWh and 10.24kWh. Request a stamped datasheet through the form at the bottom of this page.
| Item | H096-15kWh class |
|---|---|
| System | |
| Model | H096-15kWh class |
| Battery Capacity | 280Ah / 51.2V (14.33kWh) |
| Battery Type | LiFePO4 |
| Installation Mode | Floor-standing |
| Battery Cycle Life | Over 3000 cycles, remaining capacity above 80% (service life up to 12 years) |
| Electrical | |
| Battery Voltage Range | 40V – 58V |
| Communication | RS485 / CAN |
| Communication Mode | WiFi and Bluetooth connection with mobile APP |
| User Interface | LCD |
| Mechanical & Environment | |
| Dimensions (L×W×H) | 460 × 245 × 760 mm |
| Weight | 120 kg |
| Discharge Temperature | −20 °C ~ 50 °C (recommended ambient 20 °C ~ 30 °C) |
| Charging Temperature | −5 °C ~ 50 °C (recommended ambient 20 °C ~ 30 °C) |
| Storage Temperature | Recommended 0 °C ~ 45 °C |
| Protection & Certification | |
| System protection | Over-temperature protection, over-voltage protection, over-current protection, over-charge protection, over-discharge protection and load short-circuit protection |
| Certification standards | CE / FCC / RoHS |
| Protection Level | IP20 |
Specifications follow the documents shipped with each unit. Capacity, branding, enclosure and communication protocol can be customized for OEM / ODM programmes.
Applications
Homes with air conditioning, pool pumps or evening-heavy consumption, where a starter battery runs out before the cheap tariff window returns.
Higher evening demand covered without switching back to grid power before midnight.
Enough capacity for longer backup of lighting, security and IT equipment.
Essential circuits stay powered through extended grid outages.
A larger daily reserve for homes with weak or intermittent supply.
More capacity to shift consumption into cheap tariff windows.
Start at 14.33kWh and stack further units as loads are added.
Packing & Delivery
Every unit completes full-function testing before packing, ships in reinforced export packaging and arrives ready to wire up.
14.33kWh chosen against your daily consumption and essential-load list.
Before order
Built to the confirmed configuration, with cell batch records kept on file.
Per order schedule
Capacity, protection and communication functions tested before shipment.
Completed pre-shipment
Protective packing and export carton suitable for sea and land transport.
Standard export packing
Packing list, parameter sheet and wiring guidance travel with the unit.
Per shipping schedule
Wired by a qualified installer, then paired with the mobile APP before hand-over.
Depends on site conditions
