Un sistema di accumulo energetico a batteria da 100kW/215kWh in un singolo armadio per esterni può ridurre gli oneri di domanda nelle ore di punta, aumentare l'autoconsumo solare e mantenere la produzione operativa durante le perturbazioni della rete. La sua vera forza emerge quando gli armadi lavorano insieme: sette unità H098-215kWh possono funzionare in parallelo su un unico bus AC a 400 V mentre il dispatch flessibile di potenza dell'EMS assegna carica e scarica armadio per armadio, mantenendo automaticamente bilanciato lo stato di carica. Questa guida spiega tale architettura EMS in parallelo con un'implementazione live a sette armadi, per poi trattare le specifiche, gli scenari applicativi e le certificazioni IEC e SIRIM che gli acquirenti dovrebbero verificare nel 2026.
Diagramma: huadaenergy, 2026. Sette armadi condividono un unico bus AC a 400 V sotto un singolo EMS che bilancia lo stato di carica sull'intera flotta e coordina generatori diesel, carichi e PV.
Cos'è il BESS in armadio da 100kW/215kWh?
L'H098-215kWh è un sistema di accumulo energetico a batteria all-in-one che integra una batteria LFP da 215 kWh, un PCS bidirezionale da 100 kW, un ingresso solare MPPT integrato e un sistema di gestione dell'energia all'interno di un singolo armadio per esterni con grado di protezione IP55. La batteria si basa su una piattaforma DC a 768 V con celle da 280 Ah e un intervallo operativo di 672–864 V, mentre il lato AC eroga alimentazione trifase a 400 V (3P+N+PE, corrente nominale 138 A, 50/60 Hz) direttamente a un quadro di distribuzione commerciale.
Poiché batteria, conversione di potenza ed EMS sono completamente collaudati in fabbrica, il lavoro in sito si limita alla posa dei cavi, alla connessione alla rete e all'avvio. L'armadio misura 1910 × 1297 × 2414 mm e pesa 2.850 kg, con un ingombro inferiore a 2,5 m² adatto a siti commerciali con spazio limitato.
Implementazione reale: sette armadi, un EMS
La capacità in parallelo dell'H098-215kWh è comprovata in servizio commerciale, non solo sulla carta. Presso un complesso commerciale in Africa Occidentale, sette armadi funzionano affiancati su un unico bus AC — 1.505 kWh di accumulo e 700 kW di potenza combinata in un'unica fila di unità identiche, tutte consegnate collaudate in fabbrica e messe in servizio senza assemblaggio delle batterie in sito.
L'EMS è ciò che fa comportare la fila come un unico impianto. Operando tramite CAN e RS485, assegna carica e scarica armadio per armadio secondo la stessa logica di dispatch flessibile di potenza descritta nel nostro articolo sull'EMS: quando lo stato di carica diverge, la scarica privilegia gli armadi più carichi e la carica privilegia quelli più scarichi, così tutti e sette convergono invece di divergere. L'EMS coordina inoltre la fila con i generatori diesel del sito, decidendo quando le batterie alimentano l'edificio e quando i generatori devono riposare. Il raffreddamento ad aria si adatta a questo layout multi-armadio — nessun circuito di refrigerante da mantenere, e qualsiasi singolo armadio può essere sottoposto a manutenzione senza mettere offline l'impianto.

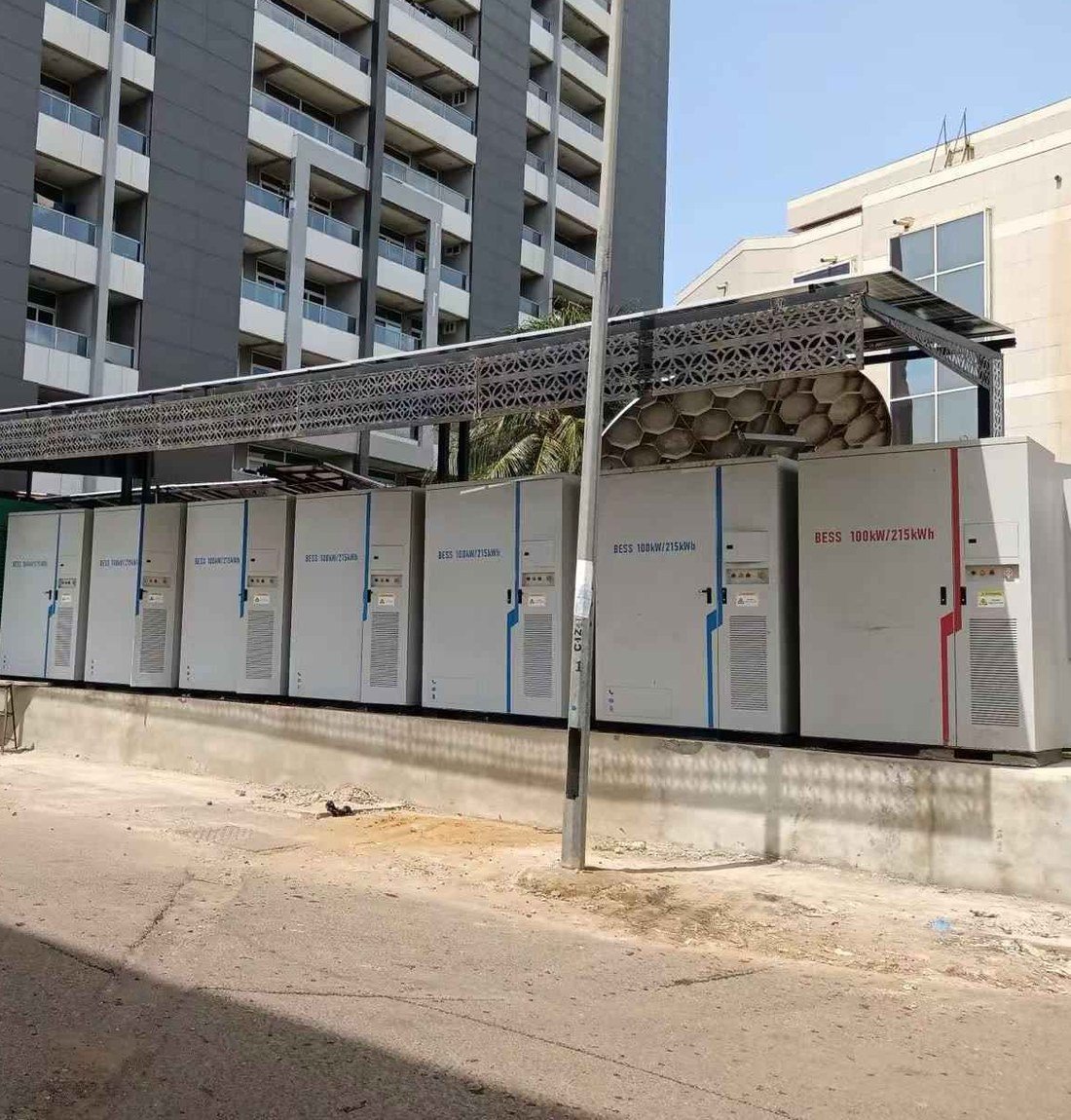

Foto: registro del progetto huadaenergy, 2026. Sette armadi H098-215kWh installati in parallelo sotto la struttura di copertura del sito.

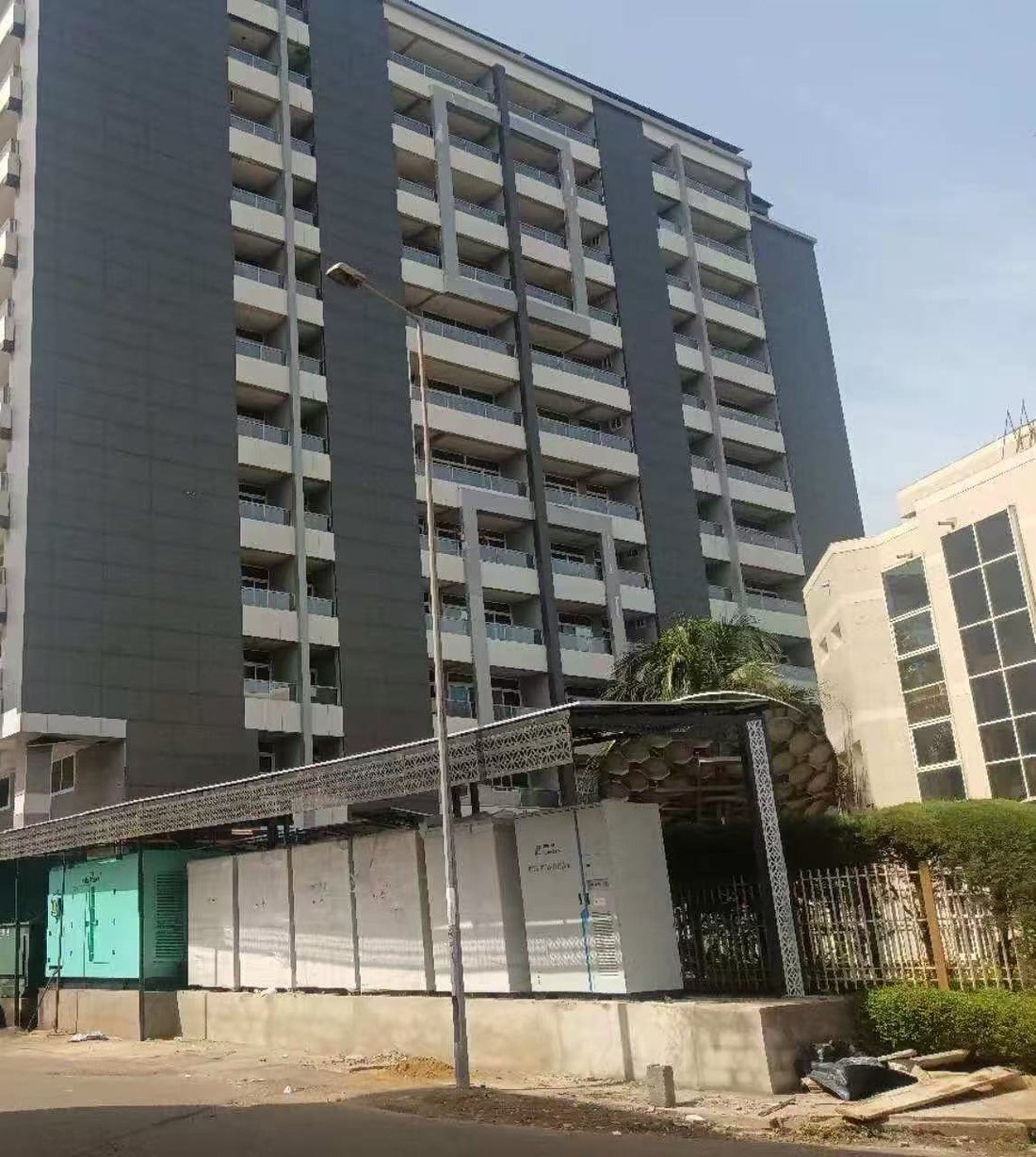

Foto: registro del progetto huadaenergy, 2026. La fila di armadi si trova alla base del complesso commerciale.
Specifiche chiave in sintesi
I numeri che decidono l'acquisto sono energia, potenza, margine PV e classificazioni ambientali — e i valori dell'H098-215kWh sono riassunti di seguito.
| Parametro | Valore | Cosa significa per gli acquirenti |
|---|---|---|
| Energia nominale | 215 kWh (LFP) | Circa 2,15 ore a potenza nominale con carica completa |
| Potenza nominale | PCS da 100 kW, 138 A | Copre un blocco di carico di punta da 100 kW o caricatori rapidi |
| Piattaforma batteria | 768 V DC, 280 Ah, 672-864 V | Stringa ad alta tensione, meno percorsi in parallelo |
| Ingresso FV | Fino a 120 kW, MPPT 200-950 V, max 850 V | I tetti commerciali si collegano in DC, senza inverter PV esterno |
| Uscita AC | 3P+N+PE, AC 400 V, 50/60 Hz | Si collega a un quadro di distribuzione commerciale standard |
| Involucro | IP55, 1910 x 1297 x 2414 mm, 2850 kg | Installazione esterna a terra, ingombro inferiore a 2,5 m2 |
| Temperature | Charge 0-50 degrees C, discharge -20 to 55 degrees C | Tropical and high-heat sites; altitude up to 2,000 m |
| Comunicazione | RS485 / CAN, cloud EMS | Remote monitoring plus local BMS/EMS integration |
Why Cabinet-Scale BESS Matters in 2026
Commercial-scale storage matters in 2026 because the market behind the meter is growing at record pace. The IEA Global Energy Review 2026 reports 108 GW of new battery storage installed worldwide in 2025 — 40% more than in 2024 — with LFP chemistry at roughly 90% of deployments. Falling cell prices reinforce the case: BloombergNEF’s Battery Price Survey 2025 put average pack prices at $108/kWh. In Southeast Asia, Malaysia’s RP4 tariff period, in force since 1 July 2025, made peak-hour commercial costs larger and more volatile.
Scenario 1: Peak Shaving and Demand Control for Factories
A 100 kW discharge window that covers the 14:00–22:00 peak period can flatten a factory’s 30-minute maximum demand, which is the number TNB’s RP4 tariff bills hardest. Under the Energy Commission’s RP4 schedule, medium-voltage Time-of-Use customers pay 31.32 sen/kWh during the weekday peak versus 27.23 sen/kWh off-peak, plus capacity and network charges totalling about RM97.06 per kW of peak-period maximum demand each month. The H098-215kWh charges at off-peak rates — or from rooftop solar — then discharges up to 100 kW through the afternoon peak, holding recorded demand near the EMS target.
The arithmetic: capping the 30-minute peak by 50 kW removes about RM4,850 per month in demand charges (50 kW × RM97.06) — roughly RM58,000 a year, illustrative and assuming the peak recurs monthly. Model against twelve months of half-hourly meter data first.
Chart: huadaenergy, based on the Energy Commission RP4 tariff schedule effective 1 July 2025. Savings figures are illustrative and based on assumptions.
Image: Pexels #34718930, Pexels License. A factory floor like this one draws power throughout the 14:00–22:00 peak window a 100 kW cabinet can serve.
Scenario 2: Higher Solar Self-Consumption with Built-In MPPT
The cabinet’s built-in MPPT accepts up to 120 kW of rooftop PV directly at 200–950 V DC (850 V maximum), so commercial solar connects without a separate PV inverter. Solar charging and off-peak grid charging run in parallel under the EMS: surplus midday generation that would otherwise be exported for little value is stored in the 215 kWh battery, then released into the evening peak, capturing both avoided imports under the 31.32 sen peak band.

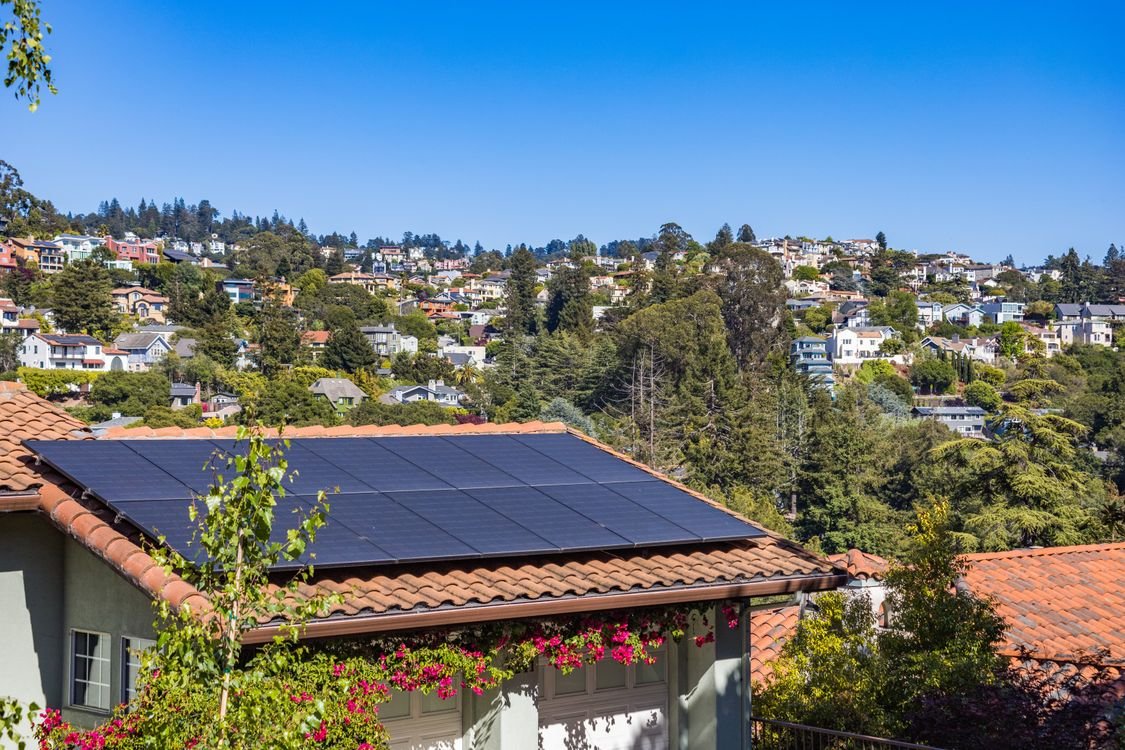

Image: Pexels #12243093, Pexels License. Rooftop PV paired with battery storage raises on-site solar self-consumption.
Scenario 3: Buffering EV Charging Plazas on Constrained Connections
A 100 kW battery buffer lets a constrained grid connection host more charging power than the connection alone would support. The product page lists EV charging plazas alongside factories and industrial parks as primary applications: the cabinet charges off-peak or from solar, then co-supplies CCS2 DC fast charging stations during the afternoon peak, when both tariffs and charging traffic peak. For sites with no usable grid connection, the Stazione di ricarica EV off-grid H096 da 193 kWh takes the same logic further.
Scenario 4: Scaling Across an Industrial Park
The H098 platform scales from 50 kWh to 315 kWh per cabinet, and multiple cabinets can be combined for park-level loads. The H098-100kWh (107.5 kWh, 50 kW) suits a mid-size workshop running daily peak shaving; the H098-150kWh (158 kWh, 100 kW) targets sites with high demand charges and existing solar; the H098-215kWh covered here serves factories and EV plazas with up to 120 kW of direct PV; and the H098-315kWh cabinet doubles discharge power to 200 kW. When loads outgrow cabinets, the same family extends into the 2.5MWh liquid-cooled container and 1MW/3MWh systems with coordinated multi-cabinet control.
Chart: huadaenergy, based on H098 product page specifications, 2026.
Certifications Explained: What the H098-215kWh Carries
As listed on the product page, the H098-215kWh is certified to IEC 63056, IEC 62477-1, IEC 62933-5-2:2020, IEC 62933-2-1:2017, EN 61000-6, RoHS 2.0 and UN38.3, and holds Malaysian SIRIM certification with the MyHIJAU mark. Each standard covers a different layer of the system.
| Certificazione | Ambito di applicazione | Why it matters to buyers |
|---|---|---|
| IEC 63056 | Safety of secondary lithium cells and batteries for electrical energy storage systems | The core battery-safety standard for stationary LFP storage; referenced in SIRIM’s 2025 guidelines for industrial storage |
| IEC 62477-1 | Safety of power electronic converter systems (PCS) | Covers the 100 kW bidirectional converter, not just the battery |
| IEC 62933-5-2:2020 | Safety of grid-integrated electrical energy storage systems | System-level ESS safety, complementing cell-level standards |
| IEC 62933-2-1:2017 | EES system parameters and test methods | Standardises the performance figures quoted in datasheets |
| EN 61000-6 | EMC emission and immunity for industrial environments | Confirms the cabinet will not disturb, or be disturbed by, factory equipment |
| RoHS 2.0 | Restrizione delle sostanze pericolose | Required for many export markets and public tenders |
| UN38.3 | Transport safety testing for lithium batteries | Mandatory for air and sea freight of lithium batteries worldwide |
| SIRIM + MyHIJAU | Malaysian product certification and official green mark | Market access and green-incentive eligibility in Malaysia |
The Malaysian credentials deserve particular attention. In September 2025, SIRIM together with the Ministry of Investment, Trade and Industry published the first edition of the Guidelines for Certification and Labelling of Energy Storage Batteries, bringing battery energy storage products into the SIRIM Product Certification Scheme, with industrial lithium storage referenced to IEC 62619 and IEC 63056. Certification comes as Type 5 product certification with annual surveillance audits for ongoing exporters, or Type 1B batch certification for single shipments. The MyHIJAU mark, administered through MGTC, places a product in Malaysia’s official green catalogue — a prerequisite for incentives such as the Green Investment Tax Allowance (GITA) and the Green Income Tax Exemption (GITE). For buyers, both safety standards and Malaysian market-access paperwork are already in place; request the stamped datasheet via the product page form for tenders.
How to Choose the Right Cabinet Configuration
Model selection is a load-profile exercise first. Before requesting a quotation, work through this checklist:
- Pull twelve months of half-hourly meter data and identify the 30-minute maximum demand that drives capacity and network charges.
- Confirm your tariff category (voltage level, General or Time-of-Use) and any AFA surcharge in your billing month.
- Estimate mountable PV: the H098-215kWh accepts up to 120 kW of direct PV within its 200–950 V MPPT window.
- Decide the backup scope, since the 400 V three-phase output must match the circuits it will carry.
- Check the site against IP55 outdoor requirements, the −20 °C to 55 °C discharge range and the 2,000 m altitude limit.
- Plan expansion — the series runs 50 / 100 / 150 / 215 / 315 kWh — and request certification documents (IEC, UN38.3, SIRIM) at quotation stage if the project requires tenders.
Domande frequenti
Cosa può alimentare un armadio di accumulo di energia a batteria da 100kW/215kWh?
At rated power it delivers 100 kW for roughly 2.15 hours on a full charge — enough to carry production lines, HVAC, lighting and EV chargers through the evening peak or a grid interruption. Sites with lower peak demand get proportionally longer coverage from the 400 V three-phase output.
Come riduce il cabinet gli oneri di domanda nell'ambito della tariffa TNB RP4?
It discharges during the 14:00–22:00 weekday peak to hold the site’s 30-minute maximum demand at the EMS target. Capacity and network charges total about RM97.06 per kW of peak-period maximum demand each month, so every kilowatt shaved off the recurring peak removes roughly that amount from the bill.
L'H098-215kWh può collegarsi direttamente al solare sul tetto?
Yes. The built-in MPPT accepts up to 120 kW of PV at a maximum input voltage of 850 V with a 200–950 V working range, so commercial rooftop arrays connect at DC without a separate PV inverter. PV charging and off-peak grid charging run in parallel under the EMS.
Quali certificazioni possiede il H098-215kWh?
As listed on the product page: IEC 63056, IEC 62477-1, IEC 62933-5-2:2020, IEC 62933-2-1:2017, EN 61000-6, RoHS 2.0, UN38.3 and MSDS, plus Malaysian SIRIM certification with the MyHIJAU mark. Stamped datasheets for tender submissions are available on request.
Quanto tempo richiede l'installazione?
The cabinet arrives factory-commissioned, so on-site work is limited to positioning, cable runs and grid connection. There is no on-site battery assembly, no liquid-cooling piping and no third-party PCS integration — commissioning is measured in days, not weeks, for a prepared site.
È possibile combinare più armadi per carichi maggiori?
Yes. Multiple H098 cabinets share one AC bus under a single EMS that balances state of charge across units, as in the seven-cabinet deployment above; the series spans 50–315 kWh, and larger projects move to containerised 500 kWh–3 MWh systems.
